Removing and Installing Cover For Spray Nozzle

Removing and Installing Cover For Spray Nozzle

Removing cover for spray nozzle
1. Disengage cap on nozzle head.
1.1. Front apron installed: Grasp spray nozzle cover at the sides, then pull out and hold the nozzle head -B-.






1.2. Disengage cap at the latches on the nozzle head -arrows A- and remove.

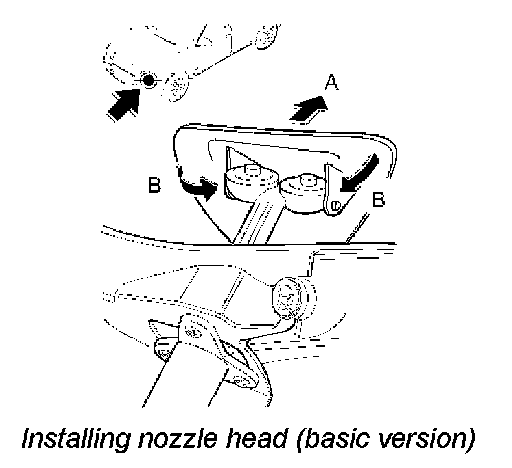

Installing cover for spray nozzle

Information: If the cover of the spray nozzle has to be replaced, the new part must be painted the same colour as the front apron.

1. Engage cap on nozzle head.
1.1. Pull nozzle head out of the front apron -A- and hold it tightly.






1.2. Engage cap at the latches on the nozzle head -arrows B-.
2. Slide nozzle head and cover into the locking teeth on the spray nozzle.
3. Release spray nozzle and check the gap to ensure that the spray nozzle cover is positioned evenly all the way round.
