Removal and Replacement

Removing And Installing Wiper Shaft

Removing Wiper Shaft
- Remove covering for the rear panel trim.
- Remove the wiper motor.

Removing wiper shaft and catch bar:

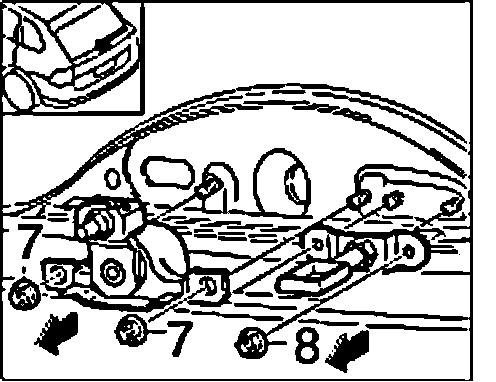

1. Unscrew the two fastening nuts "7" for the wiper shaft and the two nuts "8" securing the catch bar. Remove the wiper shaft and/or catch bar.

Installing Wiper Shaft

Remove the wiper shaft and catch bar:

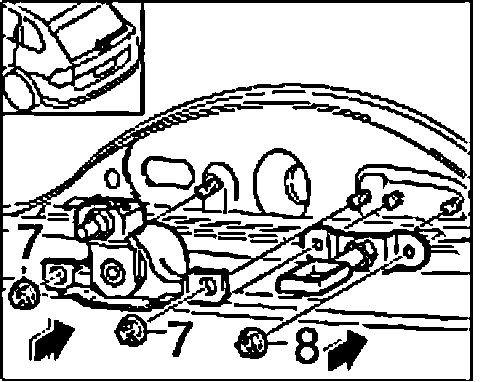

1. Mount the wiper shaft and/or catch bar and secure with the fastening nuts "8" "7" for the catch bar or wiper shaft, respectively.

Install the wiper motor.
Remove covering for the rear panel trim.

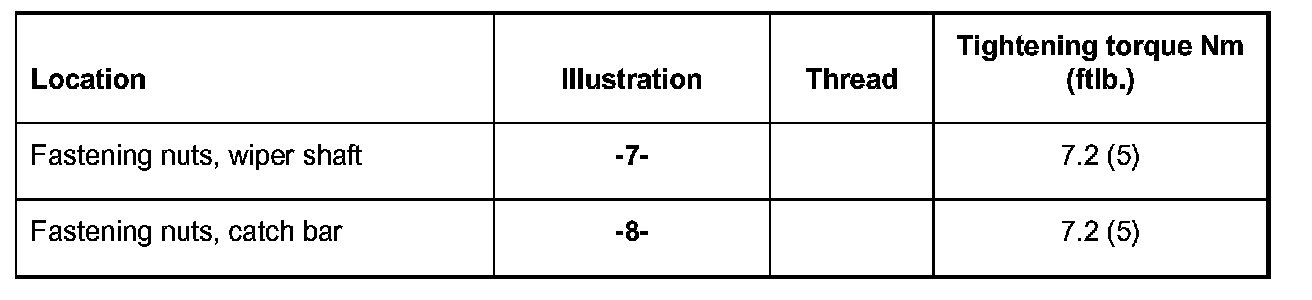

Torque
