Installing Air Flow Sensor

Removing And Installing Air Flow Sensor







Installing air flow sensor - Cayenne Turbo (type M48/50)
1. Place the air flow sensor on the flange of the air cleaner and tighten the two fastening screws.







2. Insert the hot film mass air flow sensor in the connection for the charge air cooler and tighten the hose clamp. Connect the electrical plug on the hot film mass air flow sensor.







3. Push cover up against the air cleaner housing and lock the two fastening clips.

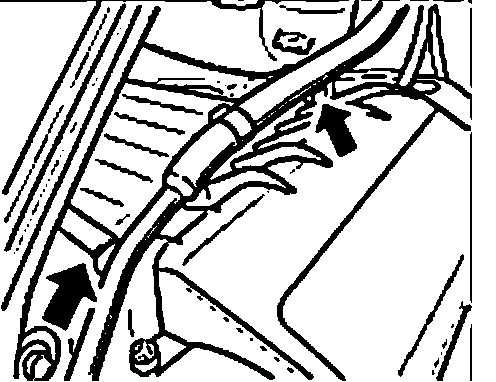

4. The coolant bleeder hose and the coolant overflow hose must be clipped back onto cylinder bank 1 - 4 on the air cleaner housing.







5. Push the air suspension line onto the right air cleaner cover.
6. Push the connections onto the cover of the air cleaner housing and mount and lock the fastening pins.







7. Install left and right engine compartment cover.
