Changing Oil For Rear Final Drive

Changing oil for rear final drive





Caution: Use only oil approved by Porsche!

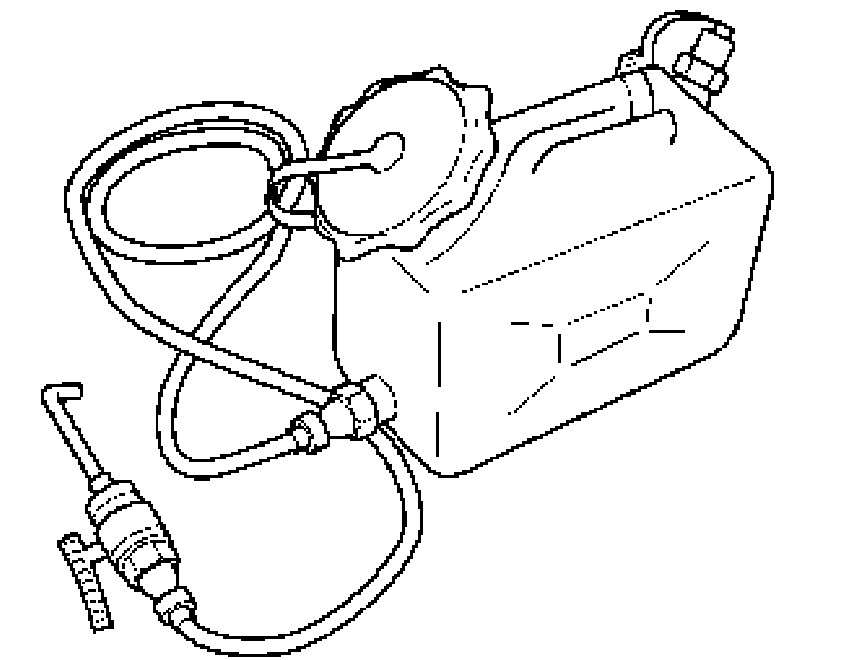

Tools

Changing oil for rear final drive
1. Place oil collecting container underneath the vehicle.

Caution:
Emerging oil is harmful to the eyes.
^ Wear personal protective equipment (e.g. safety goggles).

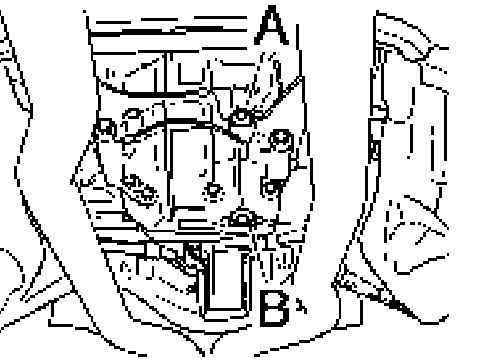

2. Unscrew oil drain plugs -B- and drain oil.
3. Screw in oil drain plug -B- with new sealing ring.
Tightening torque: 35 Nm (26 ft. lbs.)
4. Unscrew oil inspection plug -A- .

Caution: Use only oil approved by Porsche!

Note:
^ Vehicle must be horizontal to fill rear final drive.

5. Fill with oil to the lower edge of the inspection plug opening -A- using the ATF filling device for filling transmission 161 .
Filling capacity: approximately 1.25 - 1.4 L





6. Screw in oil inspection plug -A- with new sealing ring.
Tightening torque: 35 Nm (26 ft. lbs.)





Tightening torques
