Changing Oil For Rear Final Drive
Changing oil for rear final driveTools
Changing oil for rear final drive
1. Place oil collecting container underneath the vehicle.

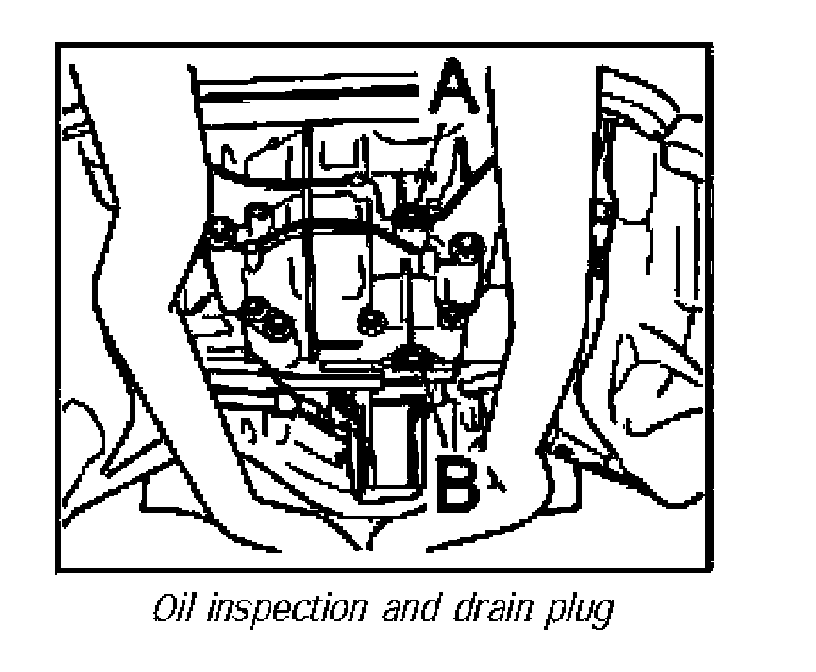

Oil inspection and drain plug
WARNING: Risk of scalding from hot oil
-> Let the oil cool down
-> Wear personal protective gear (goggles, gloves)
2. Unscrew oil drain plug -B- and drain oil. Oil inspection and drain plug
3. Screw in oil drain plug -B- with new sealing ring. Tightening torque 26 ft. lbs.
WARNING: Risk of scalding from hot oil
-> Let the oil cool down
-> Wear personal protective gear (goggles, gloves)
4. Unscrew oil inspection plug -A-.
Note: Vehicle must be horizontal in order to fill rear final drive.
5. Fill with oil using the ATF filling device for filling transmission 161 to the lower edge of inspection plug opening-A-. Tightening torque 1.25 l +0.35 l
Oil inspection and drain plug
6. Screw in oil inspection plug -A- with new sealing ring. Tightening torque 26 ft. lbs.
7. Check oil for rear final drive.
