Removing and Installing Wiring Harness For Door
Removing And Installing Wiring Harness For Door
Preliminary work
Preliminary work for door wiring harness
1. Disconnect battery.
2. Remove door trim panel.
3. Remove power window motor.
4. Remove head airbag.
Preliminary work for wiring harness for door trim panel
1. Disconnect battery.
2. Remove door trim panel.

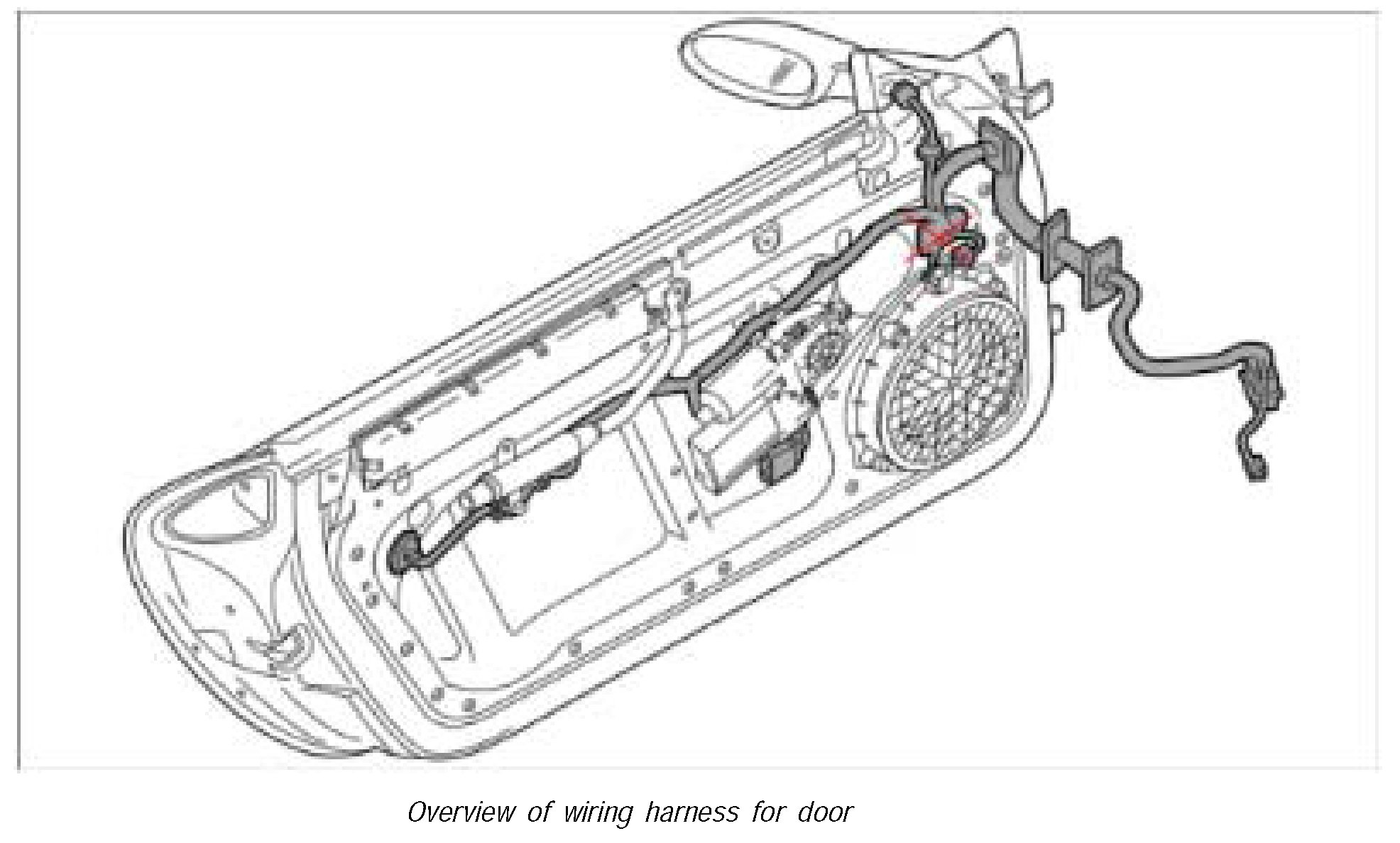

Removing wiring harness for door
Removing lateral footwell trim on driver's side
NOTE: Work is only necessary for removing or installing the wire harness for the driver's door.
1. Remove fuse carrier cover -1- -arrow A-.
2. Unscrew the three fastening screws -2- and take off the footwell trim panel -3- -arrow B-.
Removing lateral footwell trim on passenger's side
NOTE: Work is only necessary for removing or installing the wire harness for the passenger's door.
1. Partly loosen carpet -1- at the bottom in the area of the A-pillar -arrow A-.
2. Unscrew both plastic nuts -2- and take off the footwell trim panel -3- -arrow B-.
Disconnect wire harness for door (driver's side) at the A-pillar
1. Unclip wire harness plug connection for door -1- at the fuse carrier -2-.
2. Release locking mechanism -5- on the wire harness plug connection for door -6- -arrow B- and disconnect -arrow C-.
3. Remove rubber sleeve -7- and pull out together with the wire harness for door -8- from the A-pillar.
Disconnect wire harness for door (passenger's side) at the A-pillar
1. Disengage wire harness plug connection for door to the body.
2. Release locking mechanism on the wire harness plug connection for door -arrow A- and disconnect wire harness plug connection for door -arrow B-.
3. Remove rubber sleeve and pull out together with the wire harness for door from the A-pillar.
Removing wiring harness for door
1. Remove door sub-frame.
2. Release connector on woofer -arrows a- and pull off.
3. Unclip wire harness for door to the five retaining clips -arrows A-. Remove both rubber sleeves -arrow B- and take off wire harness for door.
Removing wiring harness for door trim panel
1. Release connector to switch for power windows -2- and remove.
2. Release connector on midrange loudspeaker -3- and pull off.
3. Release connector on switch for memory seat adjustment -4- and remove.
4. Pull off plug on door warning light -7-.
5. Unclip connector of wire harness plug connection for door trim panel to door wire harness to the door trim panel -arrow A-.
6. Remove wire harness in-direction of arrow-from the clips of door trim panel.
Installing wiring harness for door
NOTE:
- The wire harness for door spare parts scope means the scope for fully-equipped vehicles. Depending on the vehicle equipment, connectors not required are tied to the wire harness for door using tie-wraps.
- When doing this, ensure the lines are routed correctly so that no line becomes trapped or damaged.
1. Route wire harness for door. Fit both rubber sleeves -Arrows A- and clip in the wire harness for door with five retaining clips -Arrows B-.
2. Connect connector on woofer until connector is felt to engage.
3. Install door sub-frame.
Locking wire harness for door (driver's side) at the A-pillar
1. Push wire harness for door -8- through the A-pillar and mount rubber sleeve -8-.
2. Push together wire harness plug connection for door -6- -arrow A- and lock -arrow B-
3. Unclip wire harness plug connection for door -1- at the fuse carrier -2-.
Locking wire harness for door (passenger's side) at the A-pillar
1. Push wire harness for door through the A-pillar and mount rubber sleeve.
2. Push together wire harness plug connection for door -arrow A- and lock -arrow B-.
3. Engage wire harness plug connection for door to the body.
Installing lateral footwell trim on driver's side
1. Insert footwell trim panel -3- -arrow A- and screw down with the three fastening screws -2-. Tightening torque: 2 ftlb.
2. Insert the fuse carrier cover -1- with both clips -4- into the lateral footwell trim panel -2- and clip in -arrow B-.
Installing lateral footwell trim on passenger's side
1. Position footwell trim panel -3- -arrow A- and screw down with both plastic nuts -2-.
2. Fasten carpet -1- at the bottom in the area of the A-pillar -arrow B- Double-sided adhesive tape or suitable adhesive.
Installing wiring harness for door trim panel
NOTE:
- The wire harness for door trim panel spare parts scope means the scope for fully-equipped vehicles. Depending on the vehicle equipment, connectors not required are tied to the wire harness for door trim panel using tie-wraps.
- When doing this, ensure the lines are routed correctly so that no line becomes trapped or damaged.
1. Insert wire harness in-direction of arrow-in the clips of the door trim panel.
2. Clip connector of wire harness plug connection for door trim panel to door wire harness in the door trim panel -arrow A-.
3. Push connector on to door warning light-7-.
4. Attach connector to switch for memory seat adjustment-4-until it engages firmly.
5. Push connector on midrange loudspeaker -3- until it is felt to engage.
6. Push on connector to switch for power windows -2- until it is felt to engage.
Subsequent work
Subsequent work for door wiring harness
1. Install head airbag.
2. Install power window motor.
3. Install door trim panel.
4. Connect the battery and carry out "Work instructions after disconnecting the battery".
Subsequent work for wiring harness for door trim panel
1. Install door trim panel.
2. Connect the battery and carry out "Work instructions after disconnecting the battery".
