Removal and Replacement

683119 Removing And Installing Cassette/CD Box

Preliminary work
Remove glove compartment.

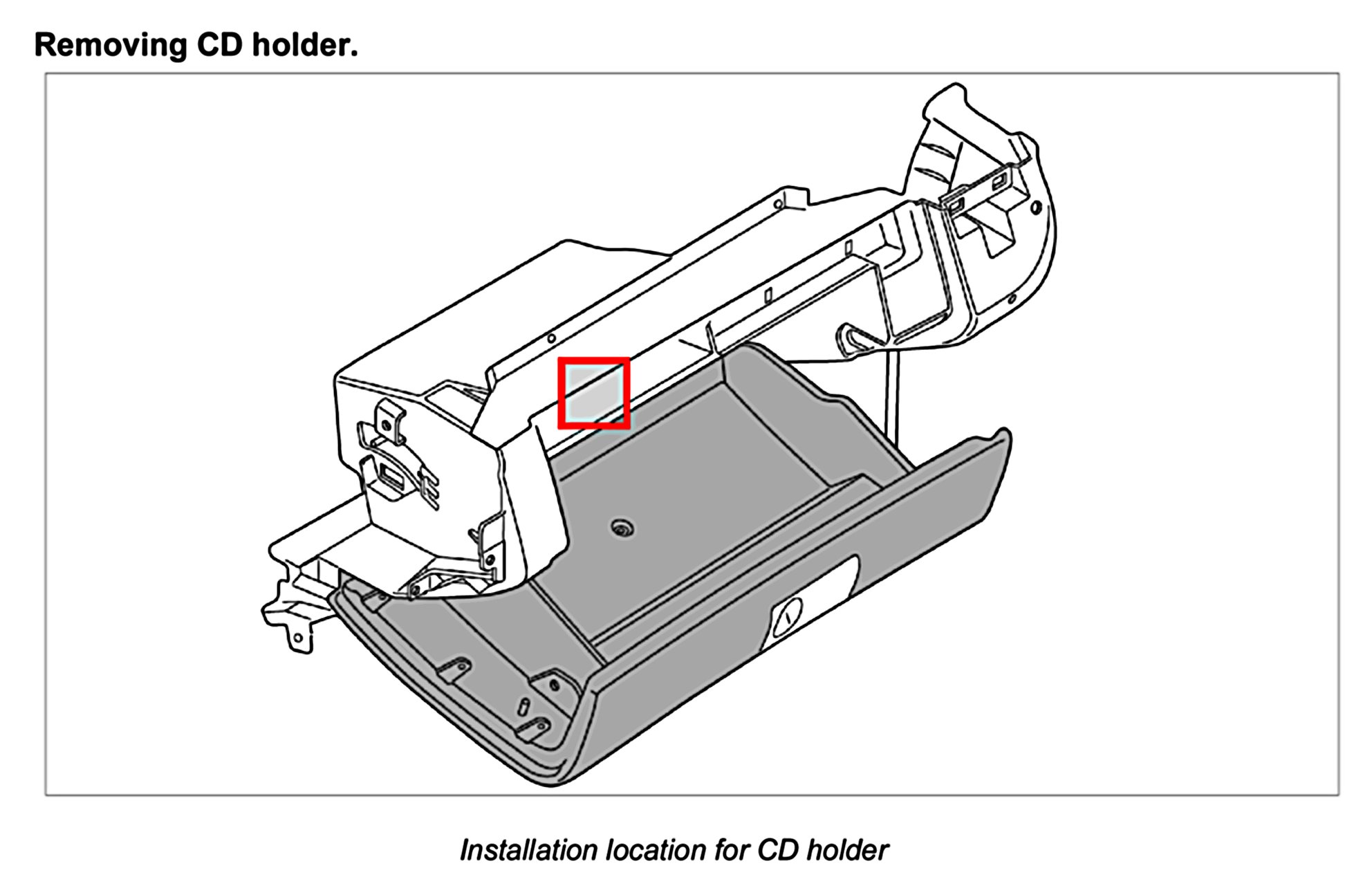

Removing CD box






1. Unscrew fastening screws -1- and remove CD holder -2-.






Installing CD box






1. Position CD holder -2- at glove compartment -3- and secure using the fastening screws -1-.






Subsequent work
Install glove compartment.
