Removing and Installing Luggage Compartment Cover

703019 Removing And Installing Luggage Compartment Cover

Preliminary work
Remove luggage compartment light.

Removing the luggage compartment cover

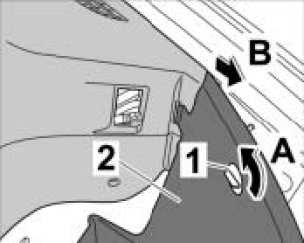

1. Unscrew plastic nut -1- -arrow A- and loosen luggage-compartment lining on the left-hand side -2- -arrow B-.

Loosen Luggage Compartment Lining:

2. Unscrew fastening screws -1- from the luggage compartment cover -2-.

Loosen Luggage Compartment Cover:

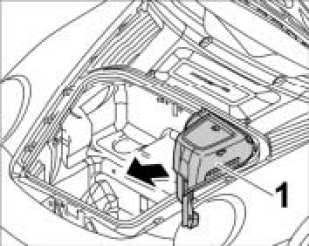

3. Remove luggage compartment cover -1- to the front.

Remove Luggage Compartment Cover:

4. Check support -1- and replace if necessary.

Checking Support:

Removing luggage compartment cover
1. Unscrew plastic nut -1- -arrow A- and loosen luggage-compartment lining on the left-hand side -2- -arrow B-.

Loosen Luggage Compartment Lining:

2. Unscrew fastening screws -1- from the luggage compartment cover -2-.

Loosen Luggage Compartment Cover:

3. Remove luggage compartment cover -1- to the front.

Removing Luggage Compartment Cover:

4. Check support -1- and replace if necessary.

Checking Support:

Installing the luggage compartment cover
1. Position luggage compartment cover -1- in the luggage compartment.

Installing Luggage Compartment Cover:

2. Screw down luggage compartment cover -2- using the fastening screws -1-.

Fastening Luggage Compartment Cover:

3. Run in luggage-compartment lining -2- -arrow A- and fasten with the plastic nut -1- -arrow B-.

Fastening Luggage Compartment Lining:

4. Check to ensure that lid seal is installed correctly.

Installing luggage compartment cover
1. Position luggage compartment cover -1- in the luggage compartment.

Installing Luggage Compartment Cover:

2. Screw down luggage compartment cover -2- using the fastening screws -1-.

Loosening Luggage Compartment Cover:

3. Run in luggage-compartment lining -2- -arrow A- and fasten with the plastic nut -1- -arrow B-.

Fastening Luggage Compartment Lining:

4. Check to ensure that lid seal is installed correctly.

Subsequent work
Install luggage compartment light.
