Removal and Replacement

Removing And Installing Intake-air Distributor

Technical values







Preliminary work for removing intake-air distributor

Preliminary work for removing intake distributor
1. Place protective covers on the vehicle to avoid damaging the body and passenger compartment.
2. Remove engine compartment lid.
3. Remove throttle housing and distributor pipe.
4. If the intake-air distributor for cylinders 4-6 is removed, the air-cleaner element must also be removed.

Removing intake-air distributor

Removing intake distributor







1. Undo four screw-type hose clamps -arrows- on resonance tube.







2. Pull engine compartment temperature sensor and rubber sleeve from the bracket (only if removing intake-air distributor on cylinders 1-3).

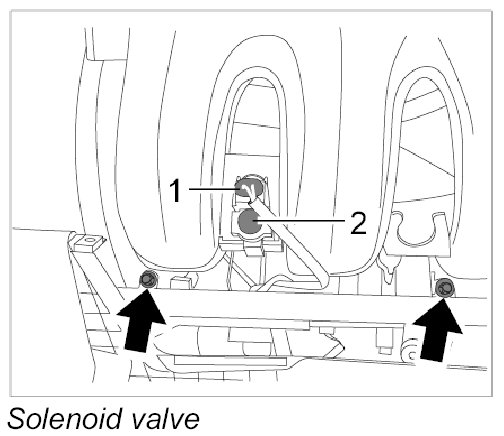

3. Disconnect and remove cable plug -1- from solenoid valve -2-.
4. Unclip solenoid valve -2- from intake-air distributor. The vacuum lines need not be removed.







5. Unscrew two Torx screws (M6 x 12) -arrows- on fuel collection pipe.
6. Pull fuel injectors with collection pipe out of the bores in the intake-air distributor.
7. Disconnect plug connection for supply lead to air-conditioning compressor (only if intake-air distributor for cylinders 4-6 is removed).
8. Unscrew six Torx screws on intake-air distributor (M6 x 35).
9. Pull intake-air distributor out of rubber sleeve on resonance tube.







10. Lift intake-air distributor and unscrew tapping screw -arrow- (only if intake-air distributor on cylinders 4-6 is removed).
11. Guide intake-air distributor out of the engine compartment.

Installing intake-air distributor
1. Clean sealing surfaces on cylinder head and intake-air distributor (use a clean, lint-free cloth that has been soaked in acetone or solvent naphtha).







2. Replace seals -arrows-.Observe position of sealing lugs.
3. Position intake-air distributor in engine compartment.







4. Lift intake-air distributor and screw in tapping screw -arrow-(only if intake-air distributor on cylinders 4-6 is installed).
5. Position six Torx screws (M6 x 35) of the intake-air distributor and tighten them. Tightening torque: 7.5 ftlb.
6. Plug in cable plug of supply lead for air-conditioning compressor and clip connector housing into the bracket provided (only if intake-air distributor on cylinders 4-6 is installed).
7. Replace O-rings on fuel injectors.
8. Push fuel injectors with collection pipe into the bores in the intake-air distributor.
9. Position and tighten Torx screws (M6 x 12) -arrows- . Tightening torque: 10 Nm (7.5 ftlb.)
10. Clip solenoid valve -2- into intake-air distributor.







11. Connect cable plug -1- to solenoid valve -2-.







12. Push engine compartment temperature sensor and rubber sleeve into bracket (only if removing intake-air distributor on cylinders 1-3). Grease rubber sleeve lightly with Optimol MP0 or silicon spray.







13. Position rubber sleeves with screw-type hose clamps.







14. Tighten screw-type hose clamps -arrows- on resonance tube.

Work subsequent to installing intake-air distributor

Subsequent work for installing intake distributor
1. If the intake-air distributor for cylinders 4-6 was removed, install the air-cleaner element again.
2. Install throttle housing with distributor pipe.
3. Install engine compartment lid.
4. Read out fault memory and correct any faults that are present.
