Fault Code 2613

Fault Code 2613

Offroad stabilizers

Diagnostic conditions
- Ignition on
- Internal function test on instrument cluster and gateway

Possible causes of fault
- No signal/communication (no signal from offroad stabilizer control unit on CAN drive)
- Faulty

Affected pins
Instrument cluster, plug B:
- Pin 19 CAN drive (high)
- Pin 20 CAN drive (low)

Diagnosis/troubleshooting

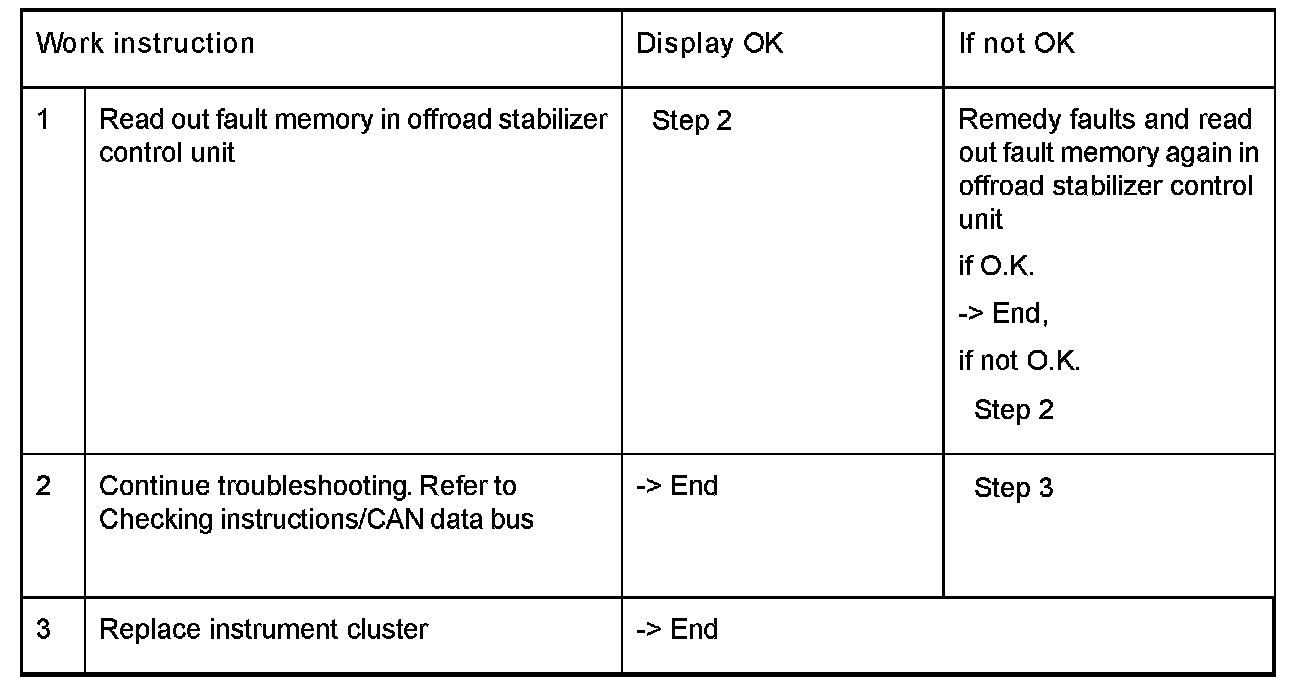

Work Instruction 1 - 3:
