P0282

P0282

Injection Valve On Cylinder 8 - Open Circuit

Diagnostic conditions
- Engine running
- Battery positive voltage greater than 8 V

Possible cause of fault
- Short circuit to ground in control line of injection valve
- DME control module faulty

Affected terminals
DME control module plug A, pin 19, and pin 2 of injection valve

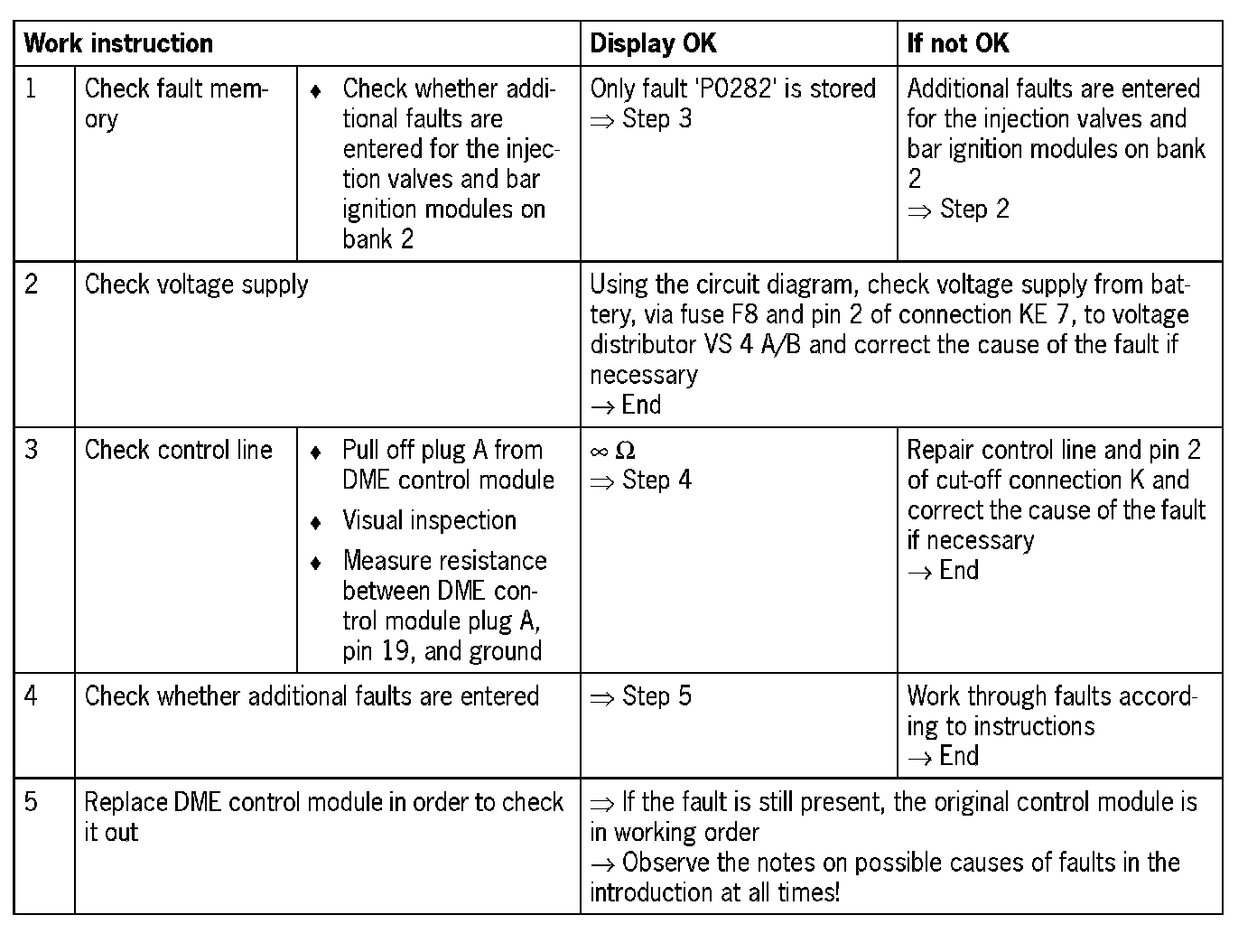

Diagnosis/troubleshooting

NOTE: Connection KE 7 is located on the bottom of the radiator tank E-box.
