Rear Vision Camera: Service and Repair

Removing And Installing Reversing Camera

Removing reversing camera
1. Release wire harness.
1.1. Disconnect tie-wrap on wire harness -Item A-.
1.2. Disconnect velcro connection on wire harness -arrow B-.







2. Unscrew fastening screws -2- for reversing camera -1-.







3. Remove -1- camera.







4. Remove trim.

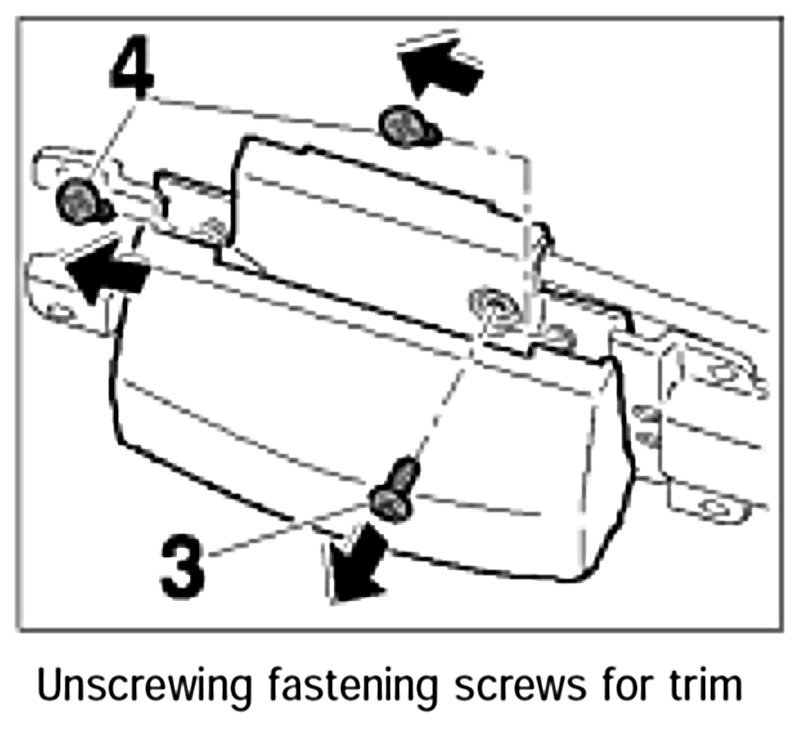

4.1. Unscrew fastening screws -3, 4-.
4.2. Open trim slightly -arrows C-.
4.3. Lift trim up and off -arrows D-.










Installing reversing camera
1. Install trim.
1.1. Open trim slightly counter to the spring tensioning -arrow E-.
1.2. Insert trim from above on housing -arrows G- and push down and in -arrows F-. As shown in the cross section, the cover must be hooked securely onto the camera and must not rattle.
1.3. Screw in fastening screws -4- and tighten to the specified tightening torque. Tightening torque: 0.5 (0.5 ftlb.) Nm
1.4. Screw in fastening screw -3- and tighten to the specified tightening torque. Tightening torque: 0.5 (0.5 ftlb.) Nm










2. Screw in fastening screws -2- and tighten so that camera -1- can still be moved.







3. Adjust seam joining line.
3.1. Adjust seam joining line at the side -I-. Gap dimension: 3 mm
3.2. Adjust seam joining line to moulding -H-. Gap dimension: 2 mm ± 0.8 mm







4. Tightening fastening screws -2- to the specified tightening torque. Tightening torque: 1.2 (1.0 ftlb.) Nm

5. Route and fasten wire harness.
5.1. Position wire harness on velcro fastening and press it on -arrow-.
5.2. Secure wire harness on retaining clip using a tie-wrap.







Subsequent work
1. Remove and install rear lid trim panel
2. Perform a function test.
2.1. Extend reversing camera using the PCM. Check whether the camera is fully extended and whether the images are transmitting correctly.
2.2. Retract reversing camera using the PCM. Check whether the camera is fully retracted.
