Removing and Installing Hydro-Tappets

Removing and installing hydro-tappets

Preliminary work

1. Remove camshafts.

Removing hydro-tappets





Note:
^ If the flat-base tappets are to be reused, they must be marked according to installation position using a water-resistant felt-tip pen and stored in such a way that they cannot be mixed up!
^ If the flat-base tappets are to be reused, they must be installed in the same location!

1. Pull the flat-base tappets out of the camshaft housing one after the other and store them in such a way that they cannot be mixed up.





E - Intake side
A - Exhaust side
5 bis 8 - Cylinders

Installing hydro-tappets

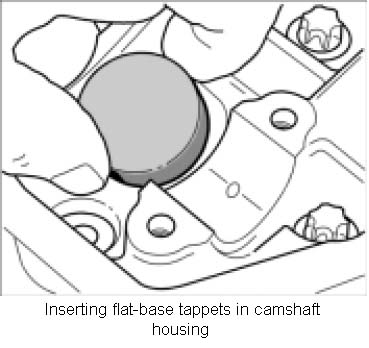

1. Grease flat-base tappets with engine oil and reinsert into the camshaft housing.

Subsequent work
1. Install camshafts.
