Turn Signal Lamp: Service and Repair

Removing And Installing Bulb For Direction Indicator Light

Preliminary work
1. Switch off light.
2. Remove main headlight.

Removing bulb for direction indicator light

ATTENTION:
Risk of short circuit.
- Before removing the headlight, remove ignition key and switch off light switch.

1. Turn the bulb holder in the headlight housing anti-clockwise and remove it.







2. Turn defective bulb anti-clockwise and remove from bulb holder (bayonet lock).







Installing bulb for direction indicator light

NOTE: Observe instructions.

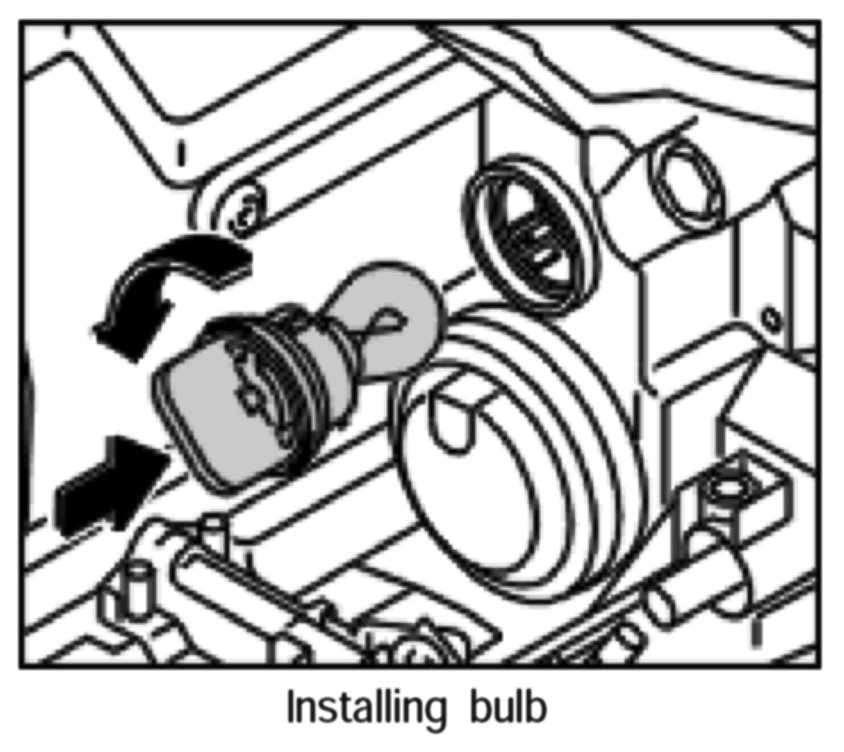

1. Screw bulb clockwise into the bulb holder (bayonet lock).







2. Insert the bulb holder into the headlamp housing and turn clockwise until it locks in place.







Subsequent work
1. Install main headlight and perform function test.
