Overhaul

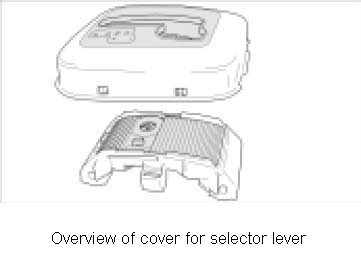

Disassembling and assembling cover for selector lever

Tools





Preliminary work for cover for selector lever
1. Remove selector knob.





2. Remove cover of centre console. To do this, unscrew two screws -arrows on right- , separate plug connection -inset- , tip cover up -curved arrow- and back, and remove.





3. Remove selector lever cover with special tool unlocking hook 9713. To do this hook into the left and right of the unlocking bracket -inset- from the front and press outwards. Pull the cover upwards slightly at the same time.





4. Release the rear release plates in the same way.
5. Remove selector-lever cover and separate cable connection.

Disassembling cover for selector lever





Note:
^ Use a clean and soft working surface to disassemble the cover for the selector lever.

Note:
^ Only press the retaining lugs until the shade loosens from the upper part.
^ Otherwise, the retaining lugs can break.





1. Release the lugs-arrows- on one side on the underside of the cover for the selector lever.





2. Tip shade up on this side.

Assembling cover for selector lever

Note:
^ Use a clean and soft working surface to disassemble the cover for the selector lever.





1. Before assembly, the printed circuit board is to be inserted correctly -arrows-.





2. The shade must be inserted in the correct position, sliding contact -1- on grinding track -2-.





3. Fasten shade on the one side with the retaining lugs-arrows-.





4. Push shade onto the upper part.

Subsequent work

Subsequent work for cover of selector lever
1. Connect cable connection on underside of selector lever cover.





2. Install selector lever cover. Make sure that the wiring harness -arrows- is not pinched in the selector frame.





3. Position cable connection -inset- on the underside of the centre console cover.





4. Insert centre console cover at the front and tip backwards -curved arrow-. Screw in two screws -arrows on right-.
5. Install selector knob.
