Info_Navi_PCM - Sheet 20
Info_Navi_PCM - Sheet 20

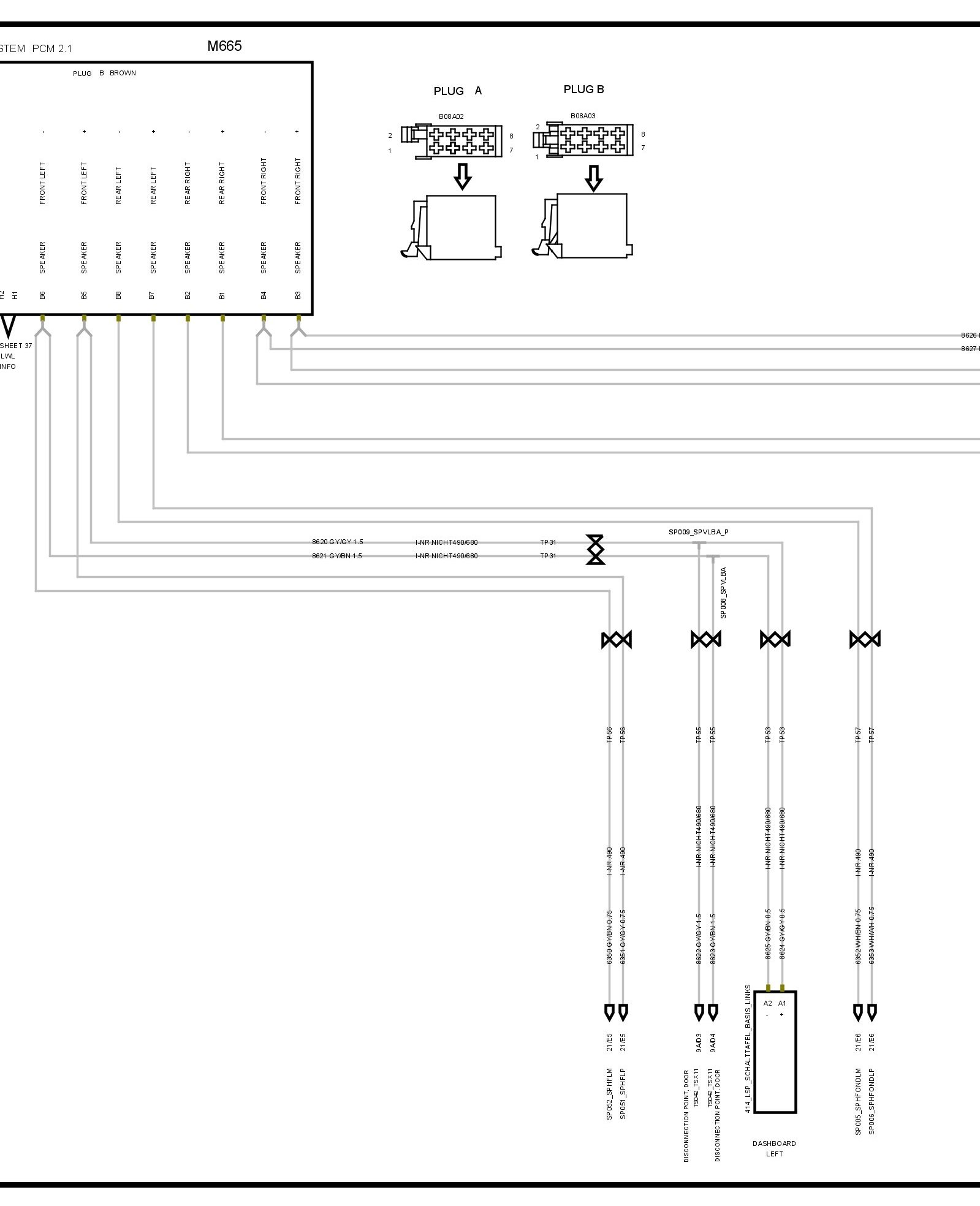

Info_Navi_PCM - Sheet 20 (Part 1):

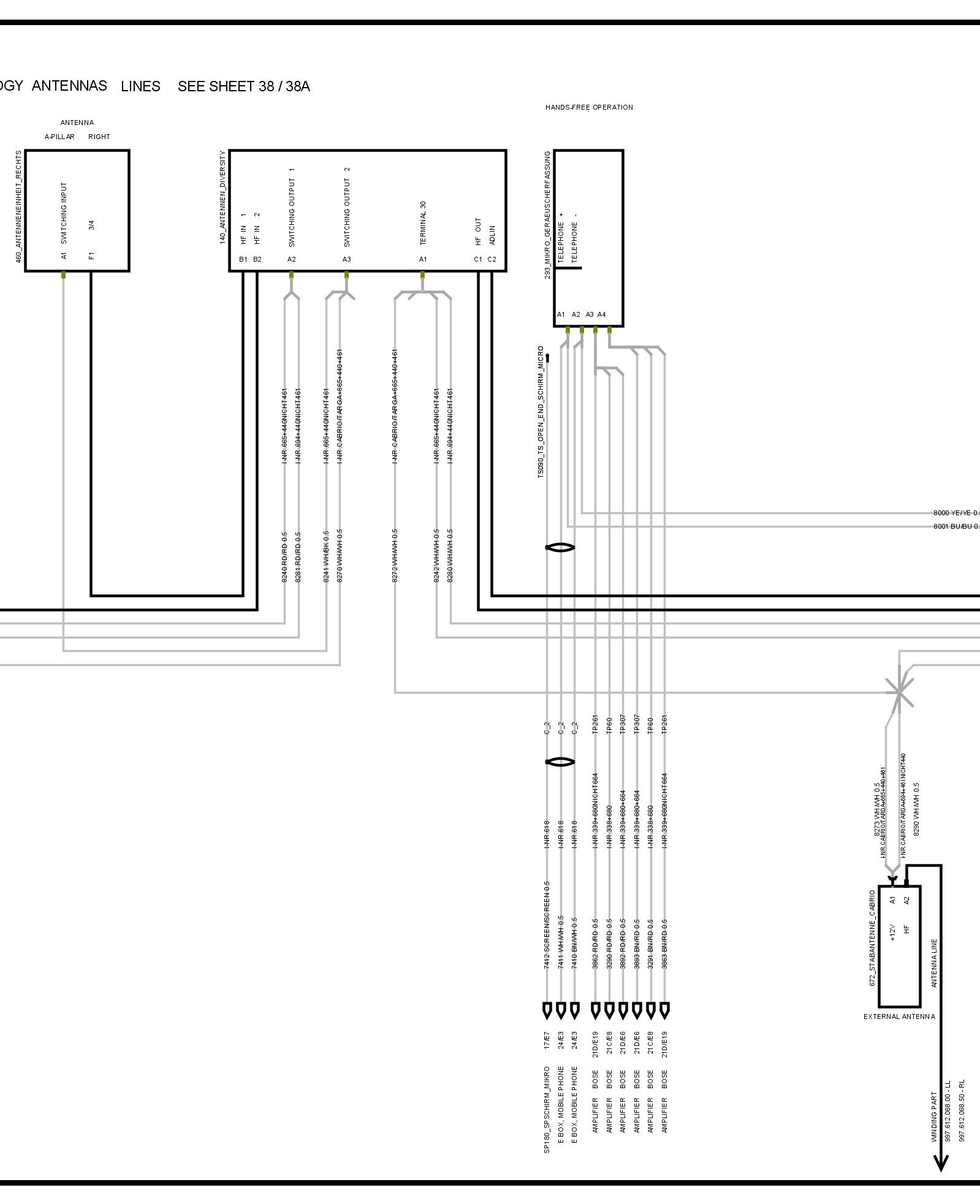

Info_Navi_PCM - Sheet 20 (Part 2):
Info_Navi_PCM - Sheet 20 (Part 3):
Info_Navi_PCM - Sheet 20 (Part 4):
Info_Navi_PCM - Sheet 20 (Part 5):
