Door Unit Carrier




Removing And Installing Rubber Seal For Door

Preliminary work

1. Remove door unit carrier. Refer to Removing and installing door unit carrier.
2. Remove rear-view mirror. Refer to Removing and installing rear-view mirror.

Removing rubber seal for door







1. Bore out tubular rivet -1-.







2. Carefully pull the rubber seal out of the clips along the door contour.







3. Pull the rubber seal off the bead of the door channel.







Installing rubber seal for door







INFORMATION: Pay attention to correct assembly (water drain).

1. Position the rubber seal in the bead of the door channel and press it on.







2. Position rubber seal at the top edge of the door and push it on.

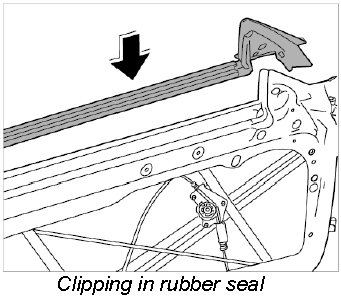

3. Clip in the rubber seal along the door contour.
4. Fasten rubber seal -1- with the tubular rivet -2-.







Subsequent work

1. Install rear-view mirror. Refer to Removing and installing rear-view mirror.
2. Install door unit carrier. Refer to Removing and installing door unit carrier.
