Grille: Service and Repair

WM 660419 Removing and installing front air grille

Preliminary work

1. Remove the front apron. -> 631519 Removing and installing front apron - section on "Removing" 631519 Removing and installing front spoiler

Information

- Only for vehicles with headlight cleaning system.

2. Remove spray nozzle for headlight washer system and set it aside. -> 927219 Removing and installing spray nozzle for headlight washer system - section on "Removing" 92721900 Removing and installing spray nozzle for headlight cleaning system

Removing front air grille

Removing front centre air grille

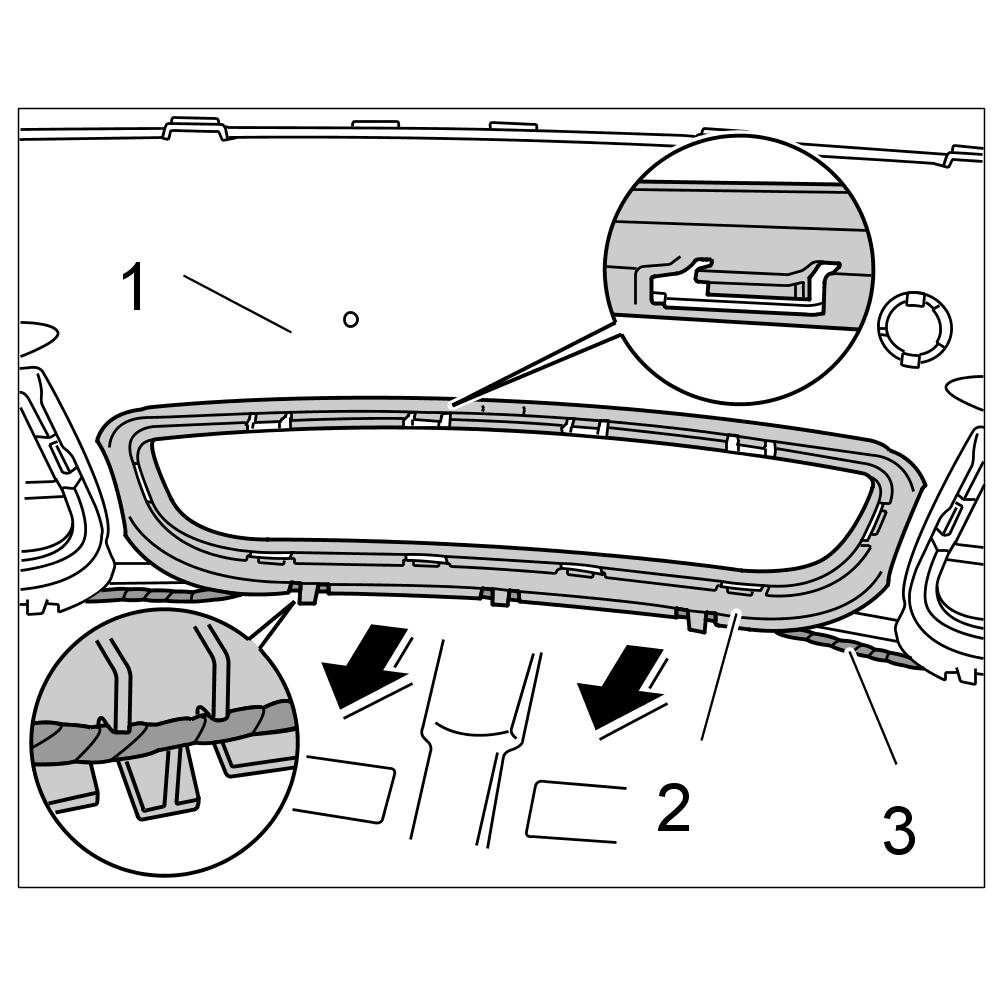

1. Insert a screwdriver between front apron -1- and air grille -2- at the same time releasing the locking tabs and remove air grille -2-.





Removing centre air grille

2. Disengage wire harness -3- from air grille -inset-.

Installing front air grille

Installing front centre air grille

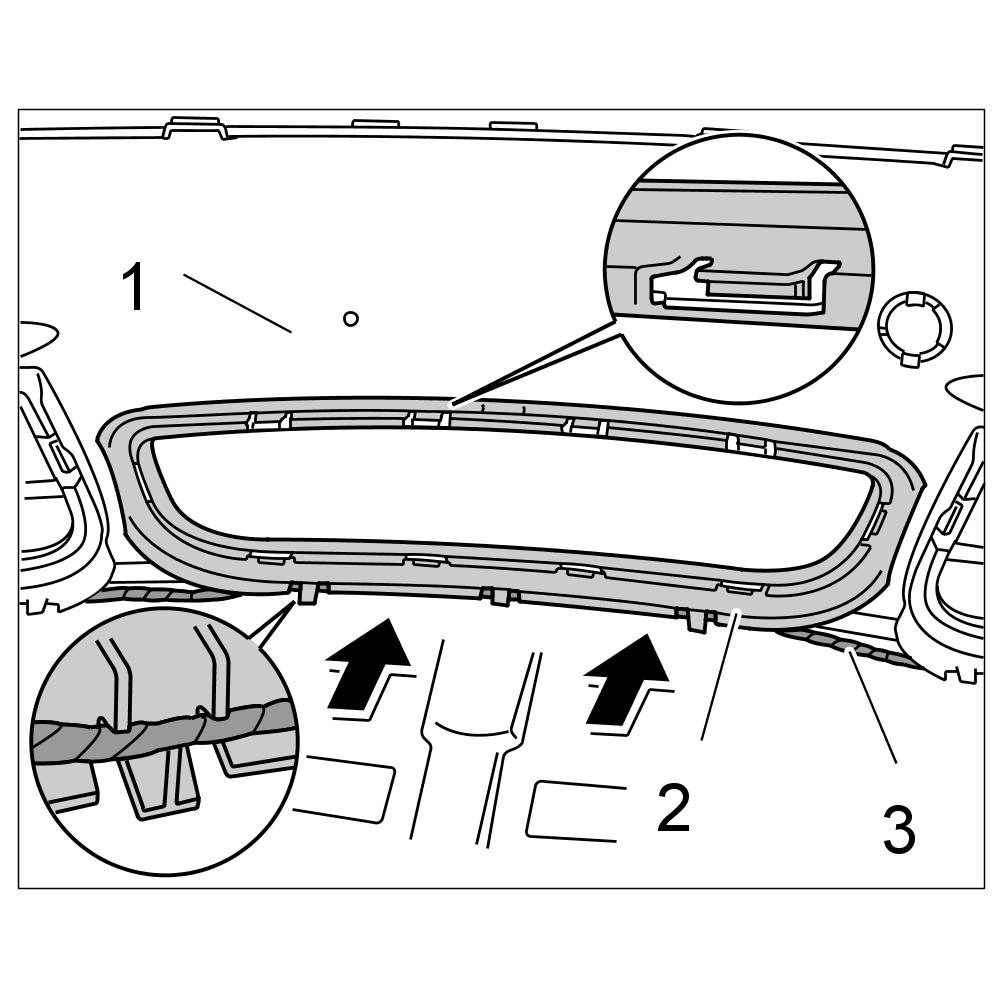

1. Engage wire harness -3- on air grille -2- -inset-.





Installing centre air grille

2. Position air grille -2- all the way round in the pegs of the front apron -1-.
3. Press air grille -2- into the front apron -1- until the locking tabs are felt to engage.

Subsequent work

Information

- Only for vehicles with headlight cleaning system.

1. Install spray nozzle for headlight washing system. -> 927219 Removing and installing spray nozzle for headlight washer system - section on "Installing" 92721900 Removing and installing spray nozzle for headlight cleaning system
2. Install front apron. -> 631519 Removing and installing front apron - section on "Installing" 631519 Removing and installing front spoiler
