Wheels and Tires: Description and Operation

Wheels and Tires

The Cayman (987) is provided as standard with 17-inch wheels with the dimensions:

6J x 17 ET 55 on the front axle and 8J x 17 ET 40 on the rear axle.

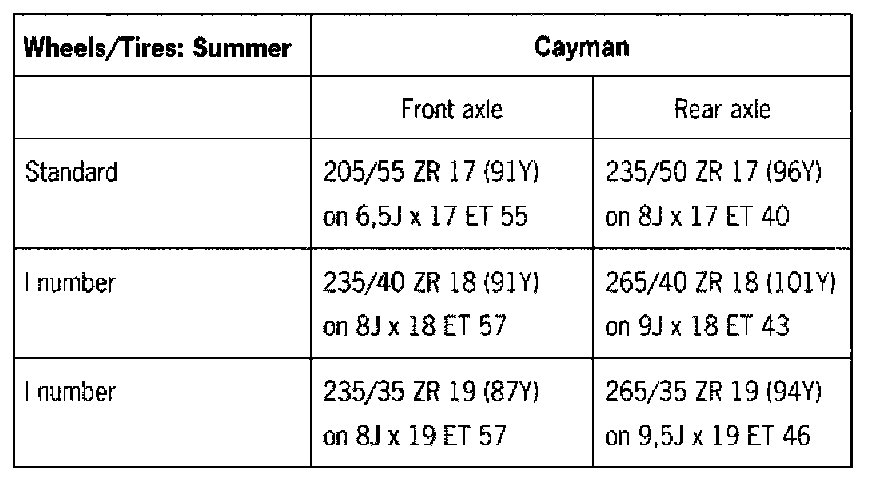

Overview of wheel and tire dimensions:
