Clutch: Specifications

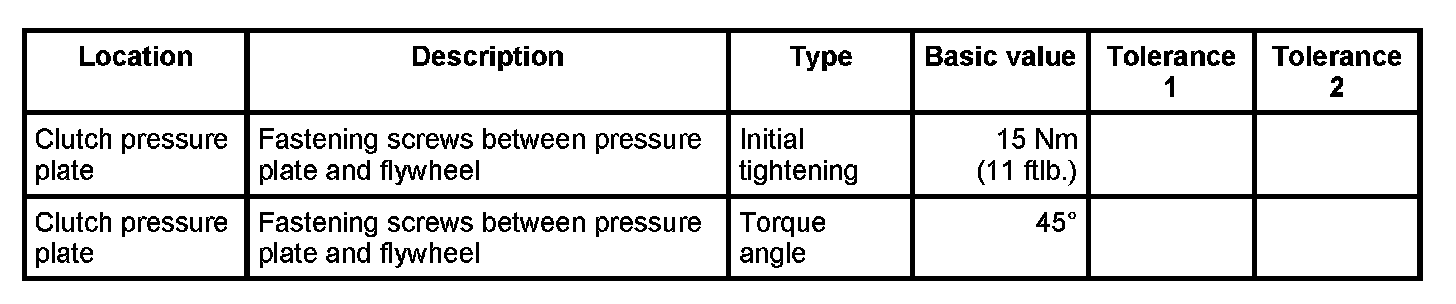

Clutch pressure plate





Tighten fastening screws in at least 5 steps and in diametrically opposite sequence.

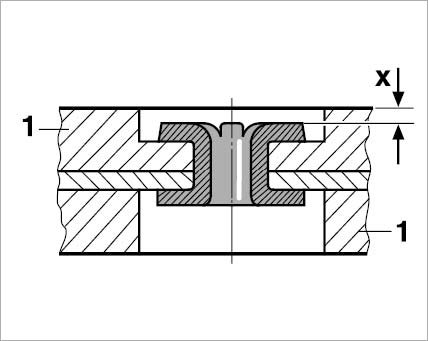

Checking clutch plate for wear

The wear dimension -X- measures 0.3 mm. If a smaller value is measured, the clutch drive plate must be replaced. When new the measured value is more than 1 mm.





Sectional view
