Changing Oil For Final Drive
Changing oil for final drive
Information
Notes
Information
Fill only with oil approved by Porsche. See Spare Parts Catalogue.
Information
Hot vehicles should cool down before beginning the activity.
Information
Vehicle must be horizontal in order to be filled and checked.
Technical values

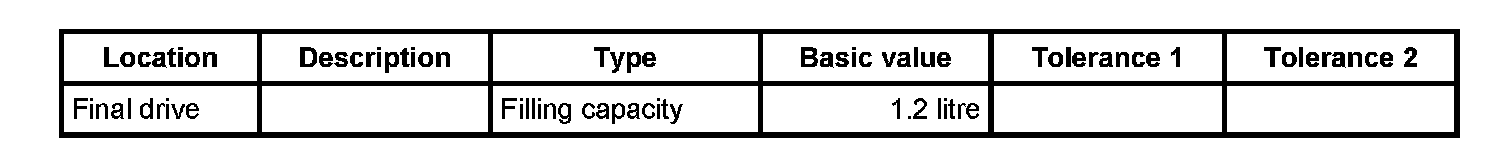

Filling capacities
Preliminary work
1. Raise the vehicle at the prescribed jacking points.
2. Remove underbody panels.
3. Place oil collection pan under the transmission.
Draining oil for final drive
Warning
Danger of scalding and chemical burns from hot ATF
-> Allow ATF to cool down
-> Wear personal protective gear (goggles, gloves)
1. Unscrew oil filler plug.
Oil filler screw on final drive
Warning
Oil for rear final drive can emerge
^ Oil for final drive is harmful to the eyes
-> Wear personal protective gear (goggles, gloves)
Warning
Hot oil for rear final drive can emerge
^ Hot oil for final drive is harmful to the eyes and can cause scalding
-> Always allow oil for final drive to cool down before starting work
-> Wear personal protective gear (goggles, gloves)
2. Unscrew oil drain plug and drain oil.
Oil drain plug for final drive
3. Replace sealing ring for drain plug, clean drain plug, and tighten. -> Tightening torque: 19 ftlb.
Topping up oil for final drive
Warning
Oil for rear final drive can emerge
^ Oil for final drive is harmful to the eyes
-> Wear personal protective gear (goggles, gloves)
Warning
Hot oil for rear final drive can emerge
^ Hot oil for final drive is harmful to the eyes and can cause scalding
-> Always allow oil for final drive to cool down before starting work
-> Wear personal protective gear (goggles, gloves)
1. Fill oil for final drive with ATF filling device for filling transmission NR.161 until oil escapes at the oil filler opening.
Replace sealing ring for filler plug, clean filler plug, and tighten. -> Tightening torque: 16 ftlb.
Oil filler screw on final drive
2. Fit the underbody panel.
Subsequent work
1. Fit underbody panels.
2. Lower the vehicle.
