C2 Bose Audio Option Pack - Sheet 21C

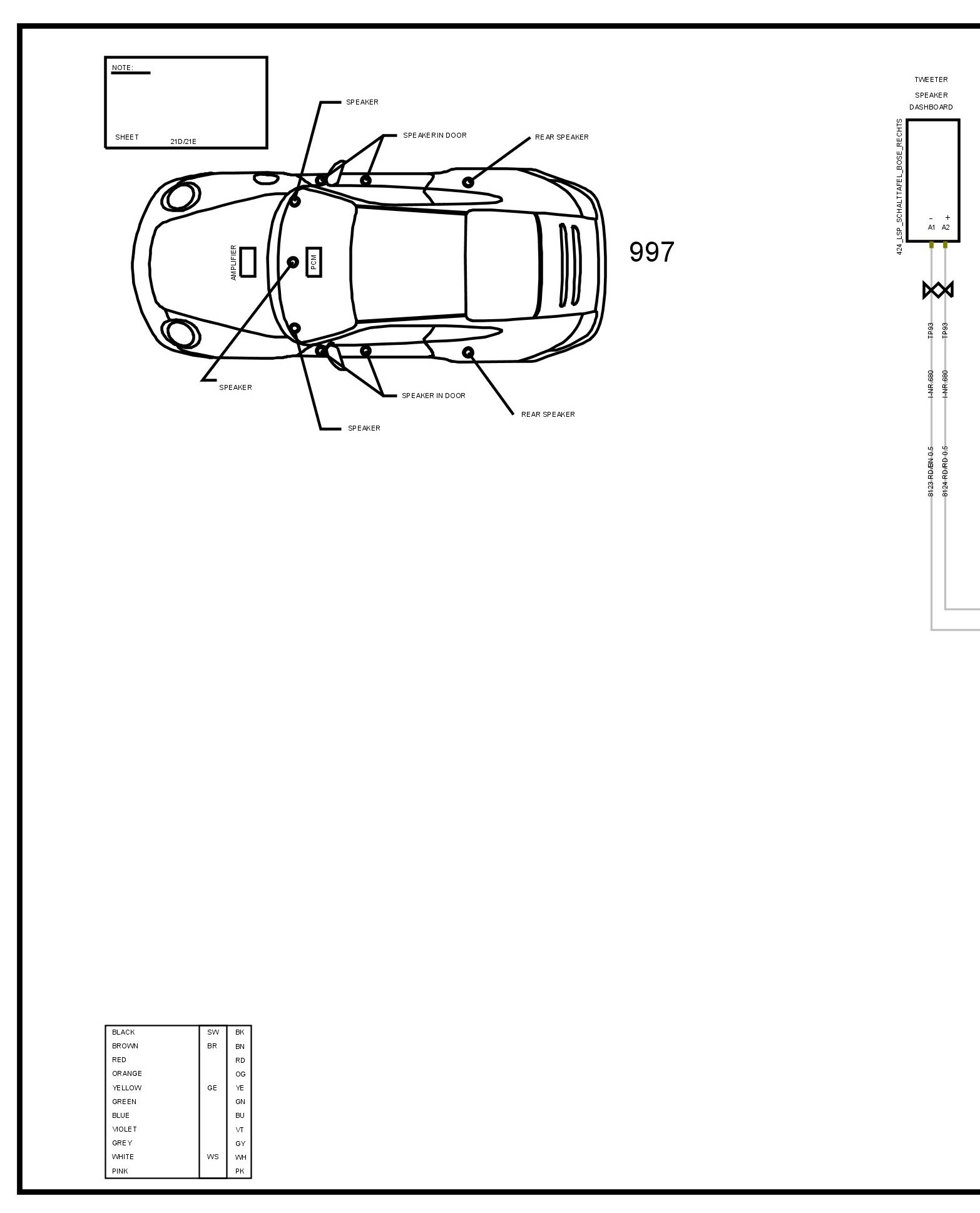

C2 Bose Audio Option Pack - Sheet 21C (Part 1):

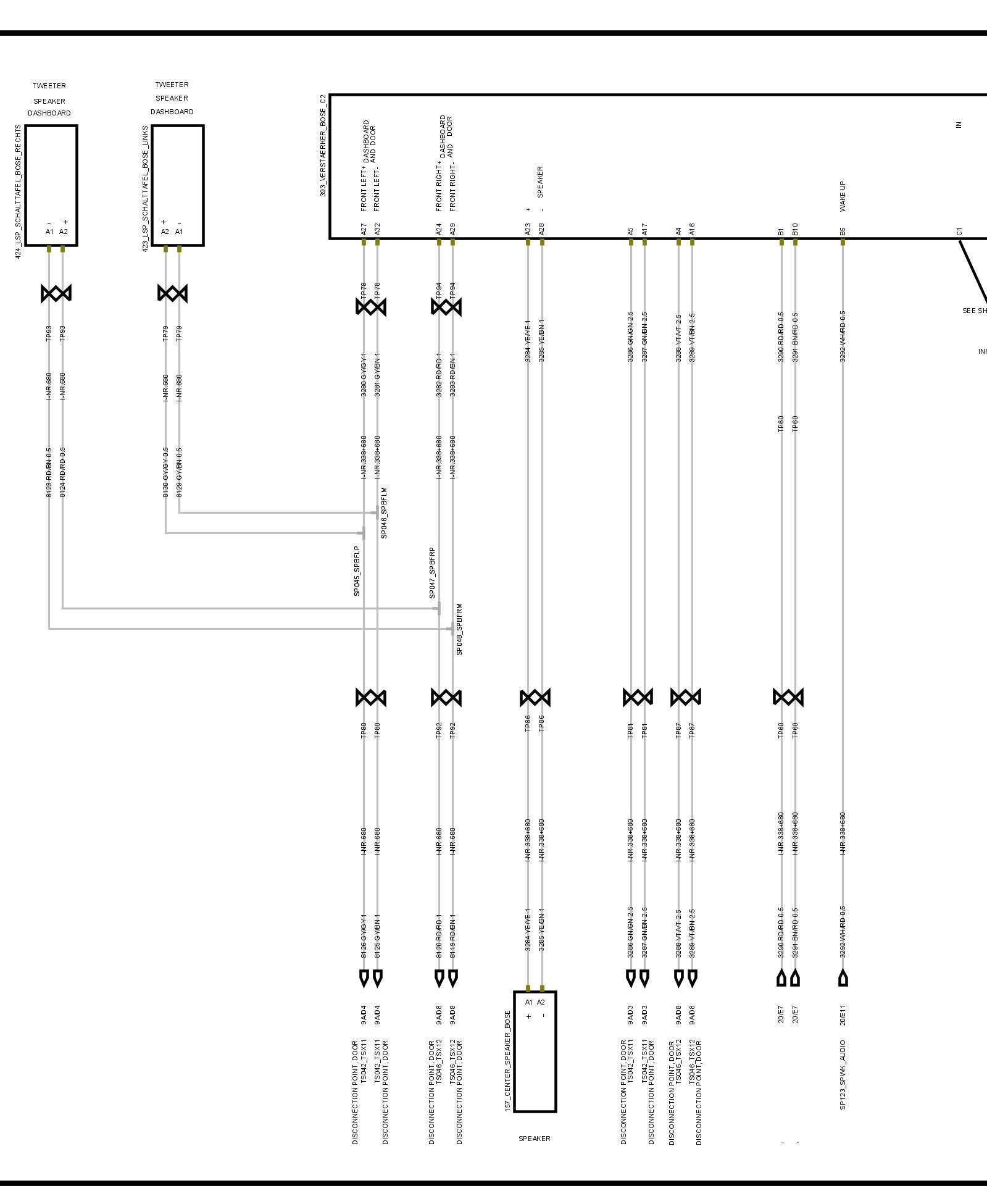

C2 Bose Audio Option Pack - Sheet 21C (Part 2):

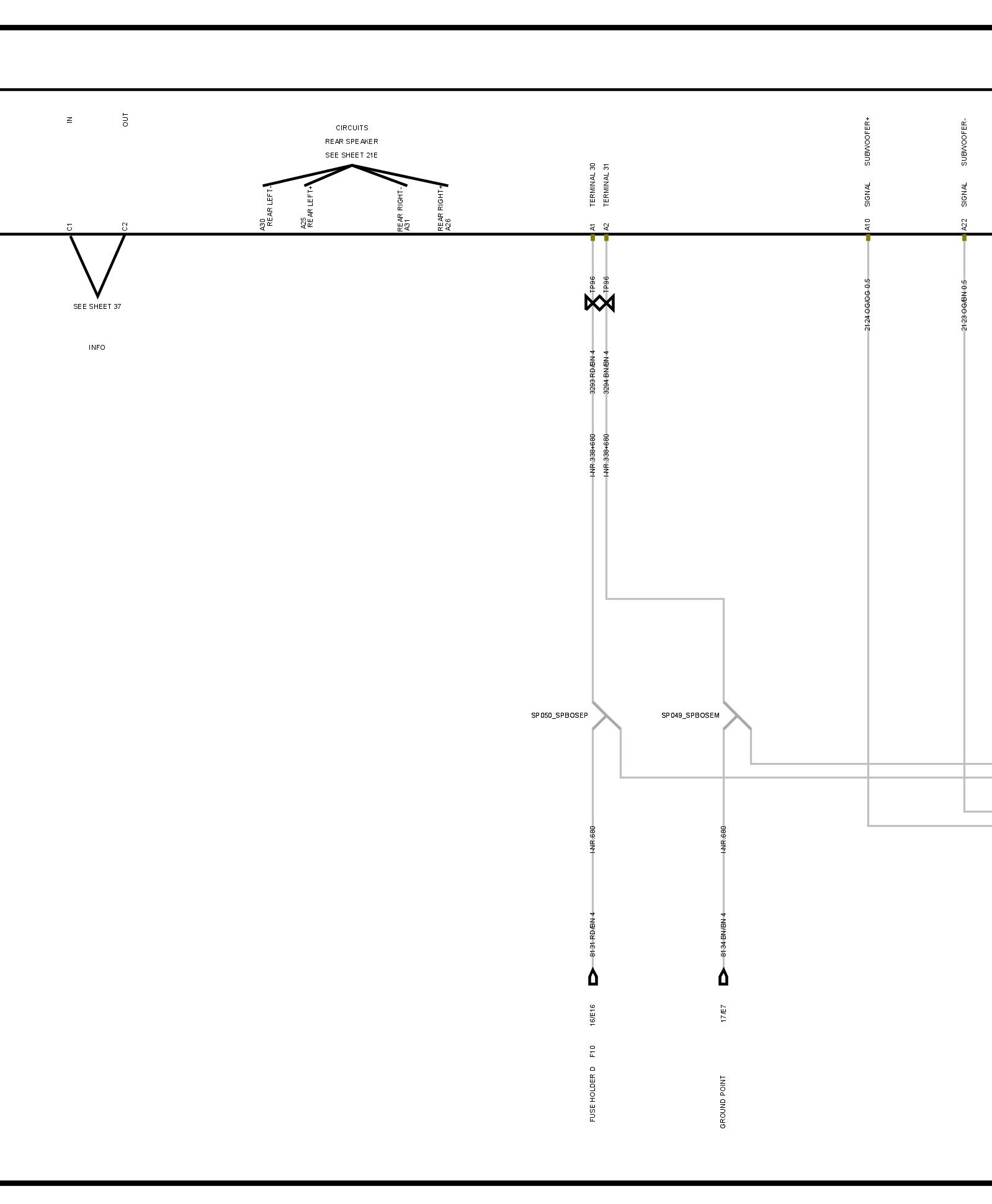

C2 Bose Audio Option Pack - Sheet 21C (Part 3):

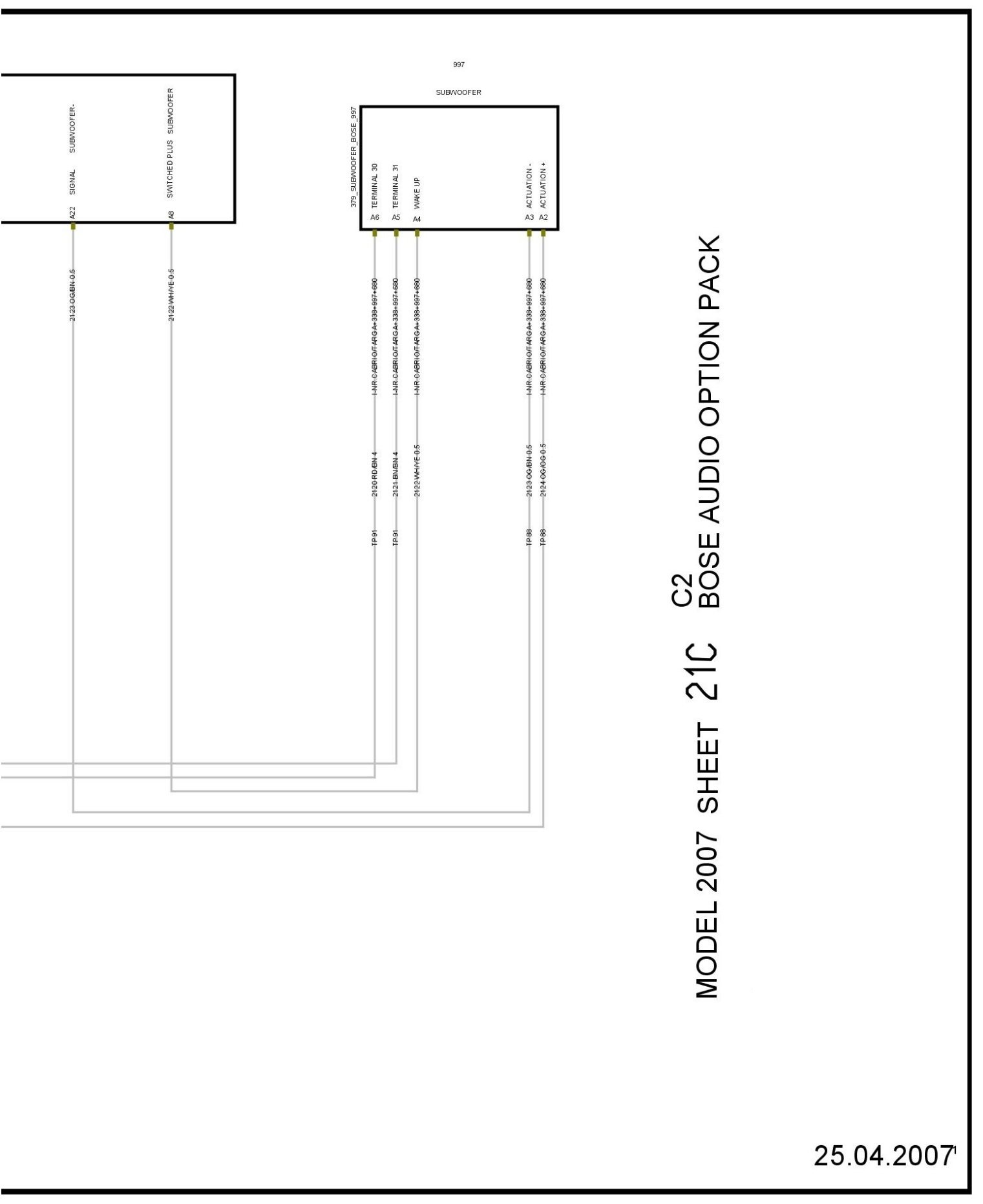

C2 Bose Audio Option Pack - Sheet 21C (Part 4):
