Control Unit Gateway - Sheet 7
Control Unit Gateway - Sheet 7

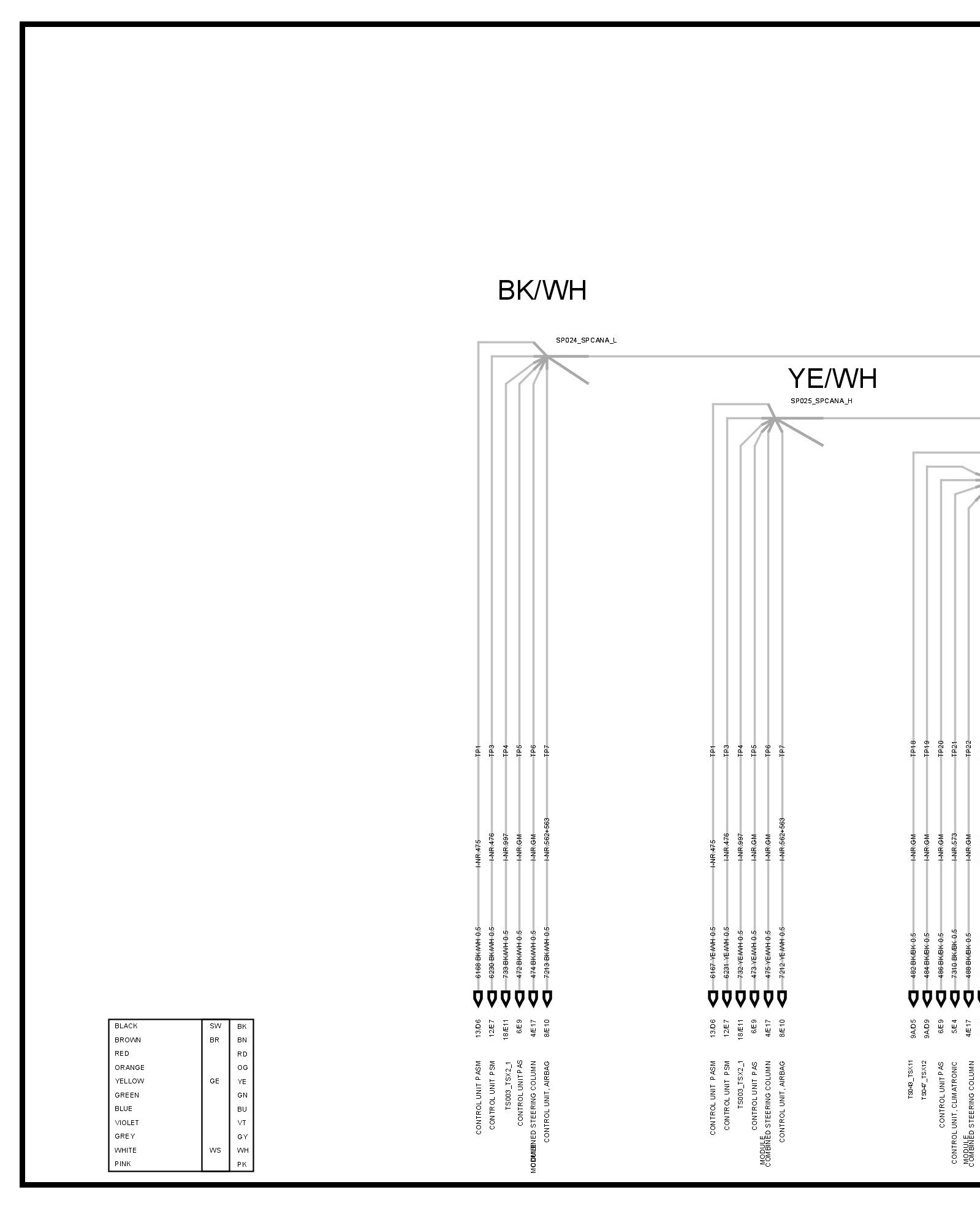

Control Unit Gateway - Sheet 7 (Part 1):

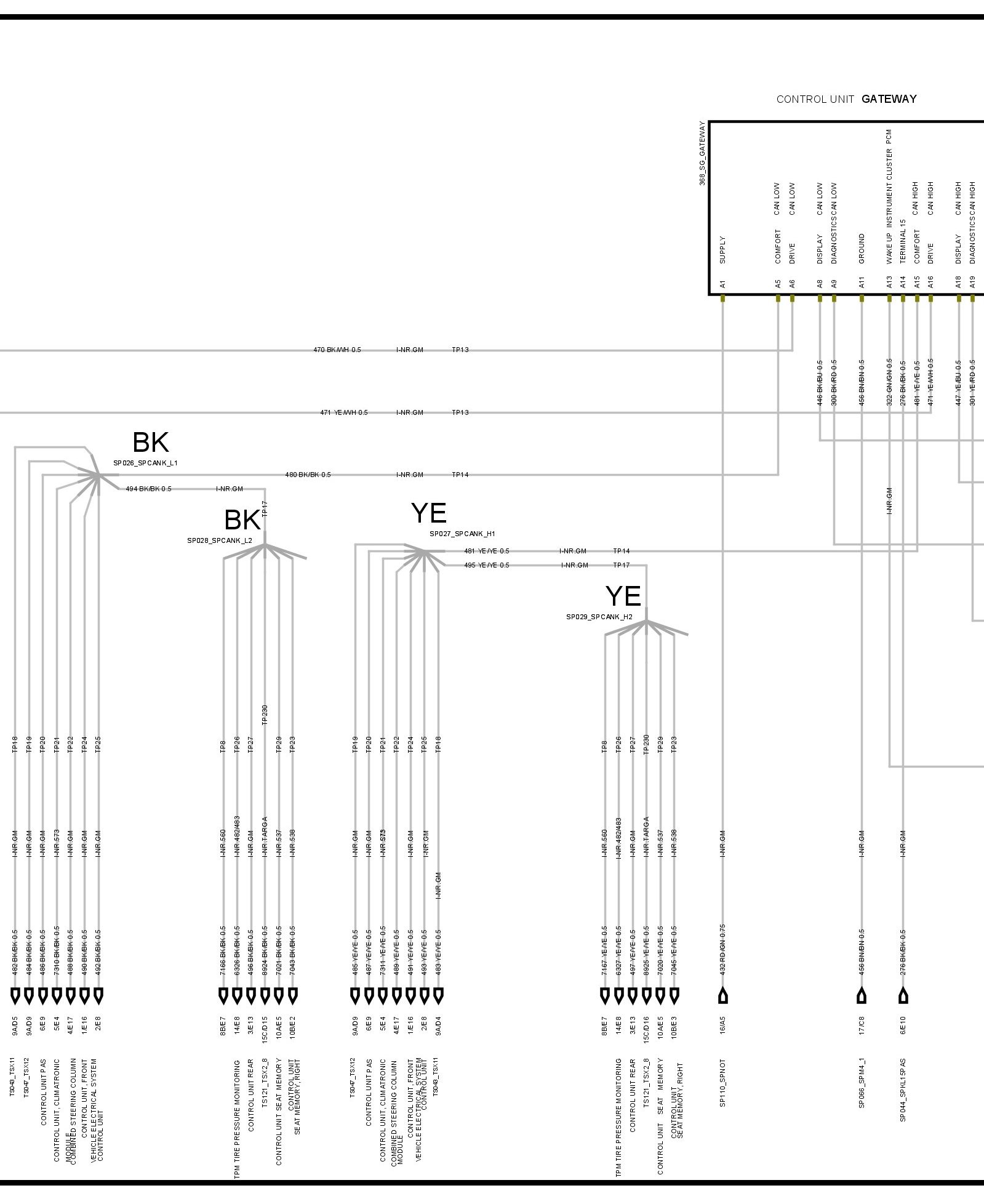

Control Unit Gateway - Sheet 7 (Part 2):

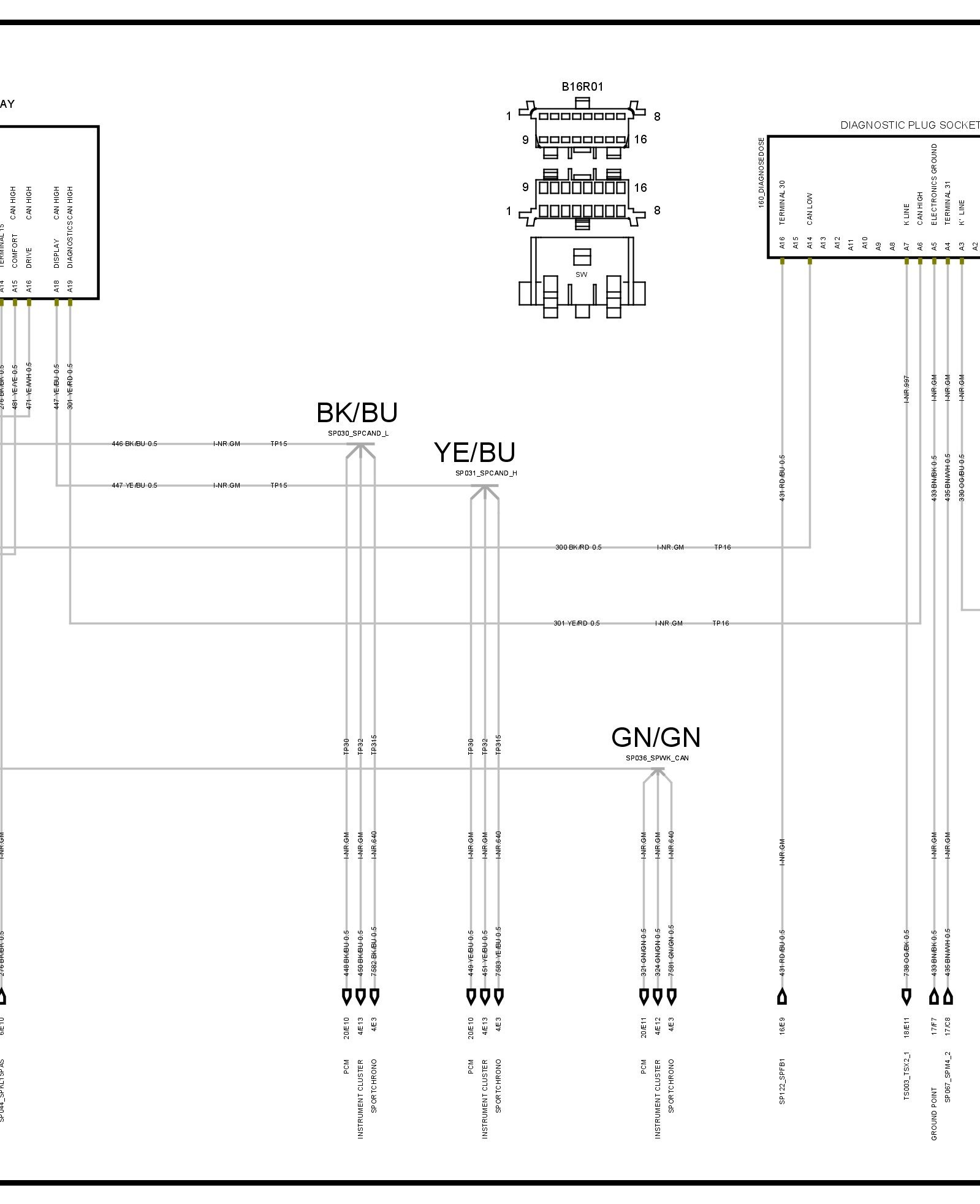

Control Unit Gateway - Sheet 7 (Part 3):

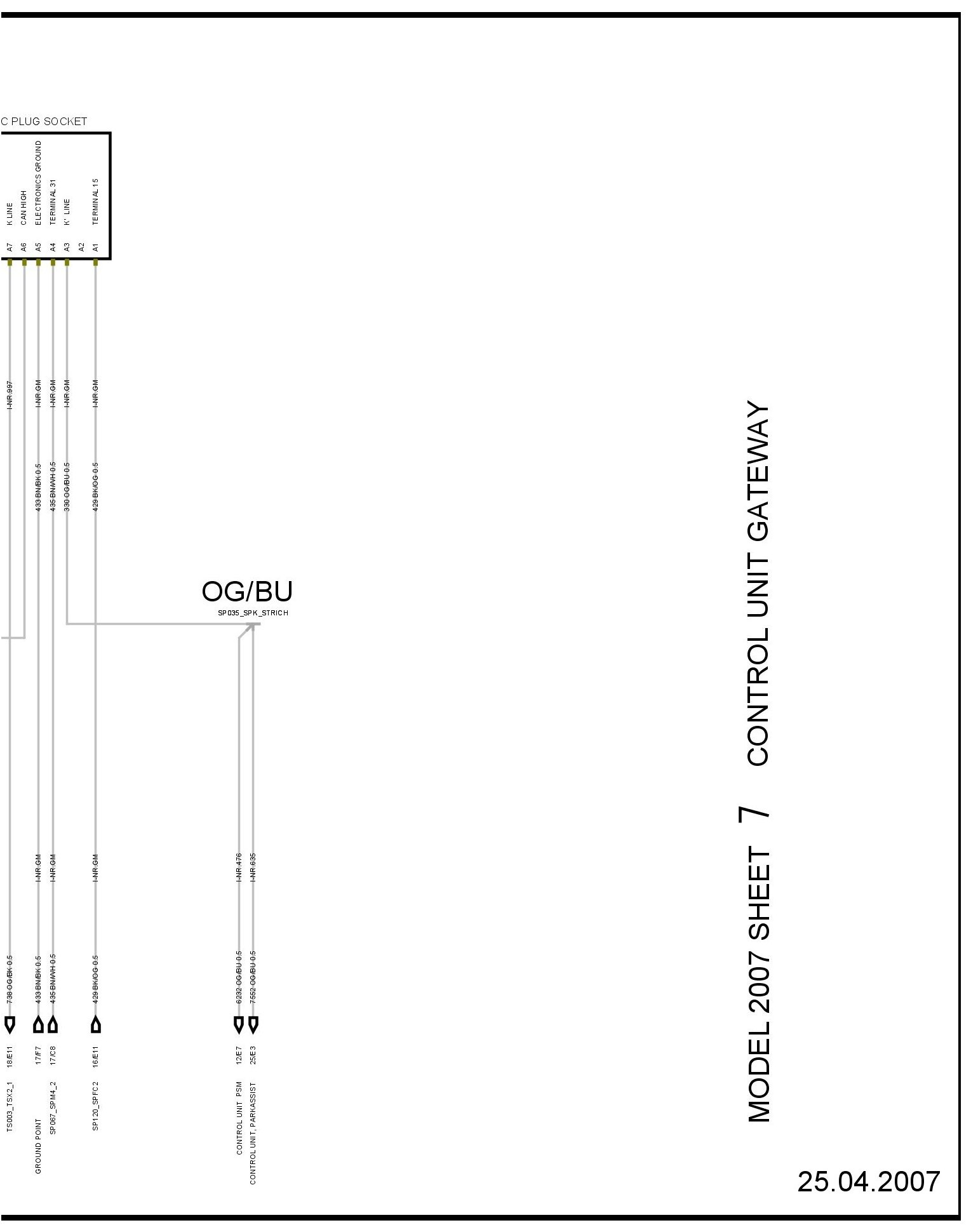

Control Unit Gateway - Sheet 7 (Part 4):
