Doors

9X7 Door Wiring Harness - Sheet 9

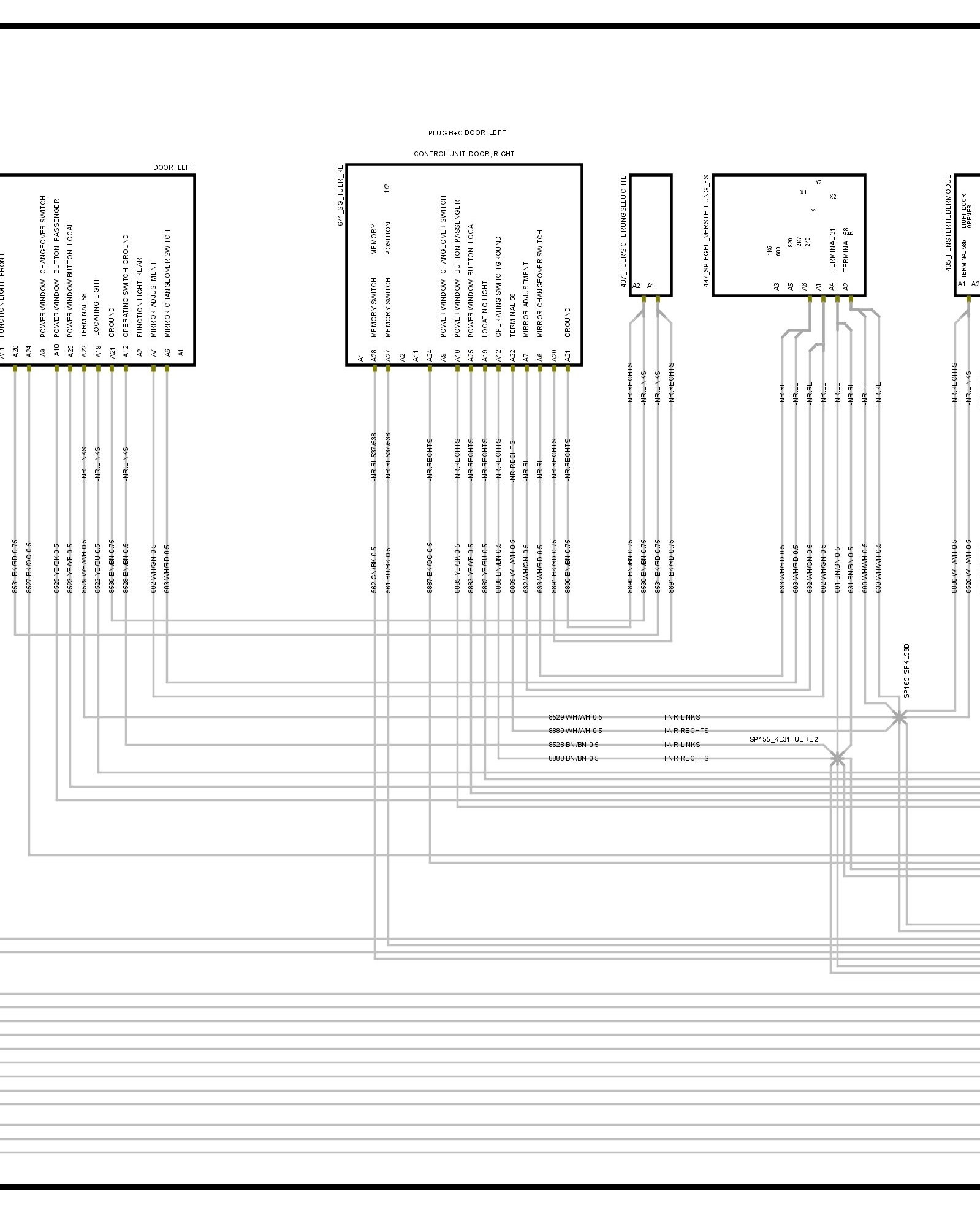

9X7 Door Wiring Harness - Sheet 9 (Part 1):

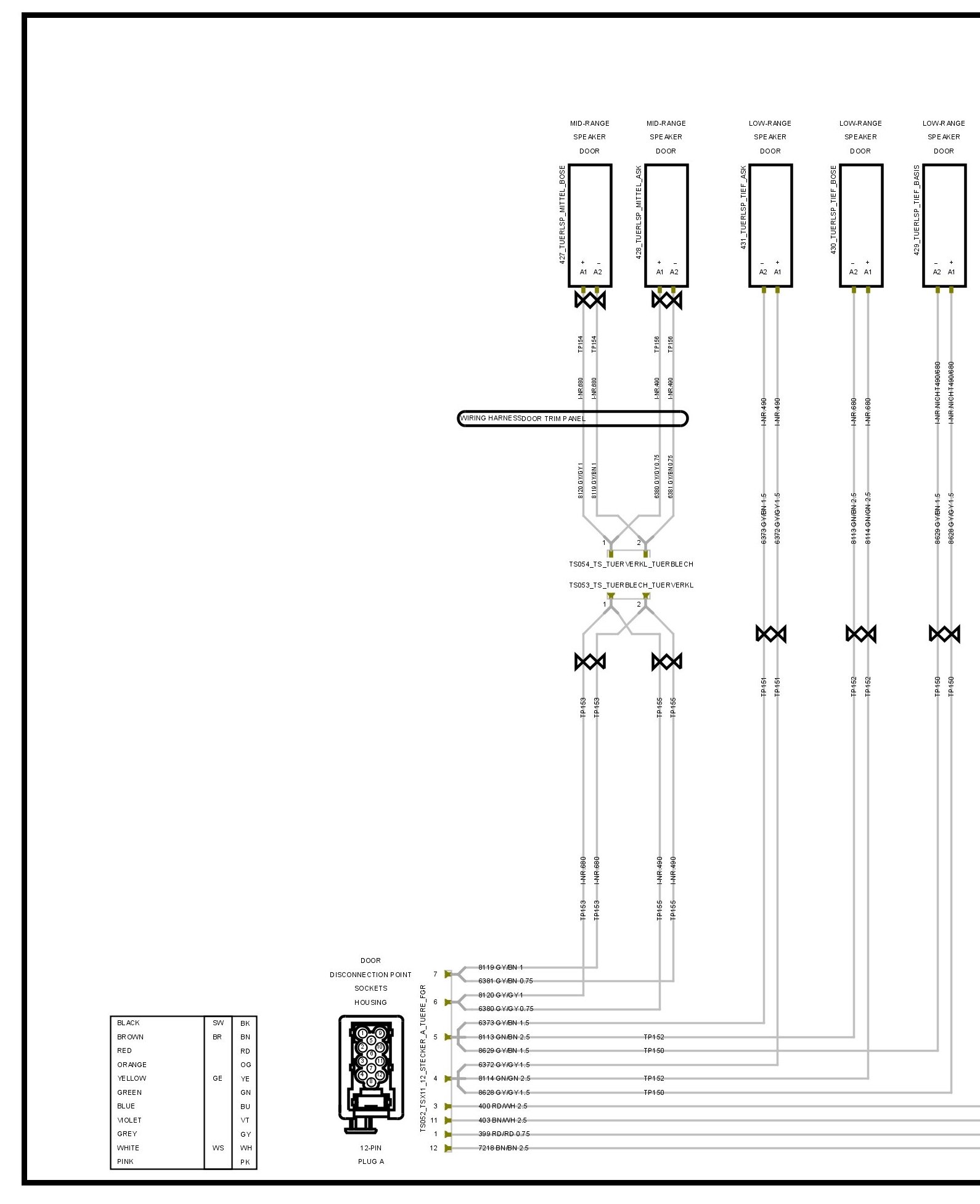

9X7 Door Wiring Harness - Sheet 9 (Part 2):

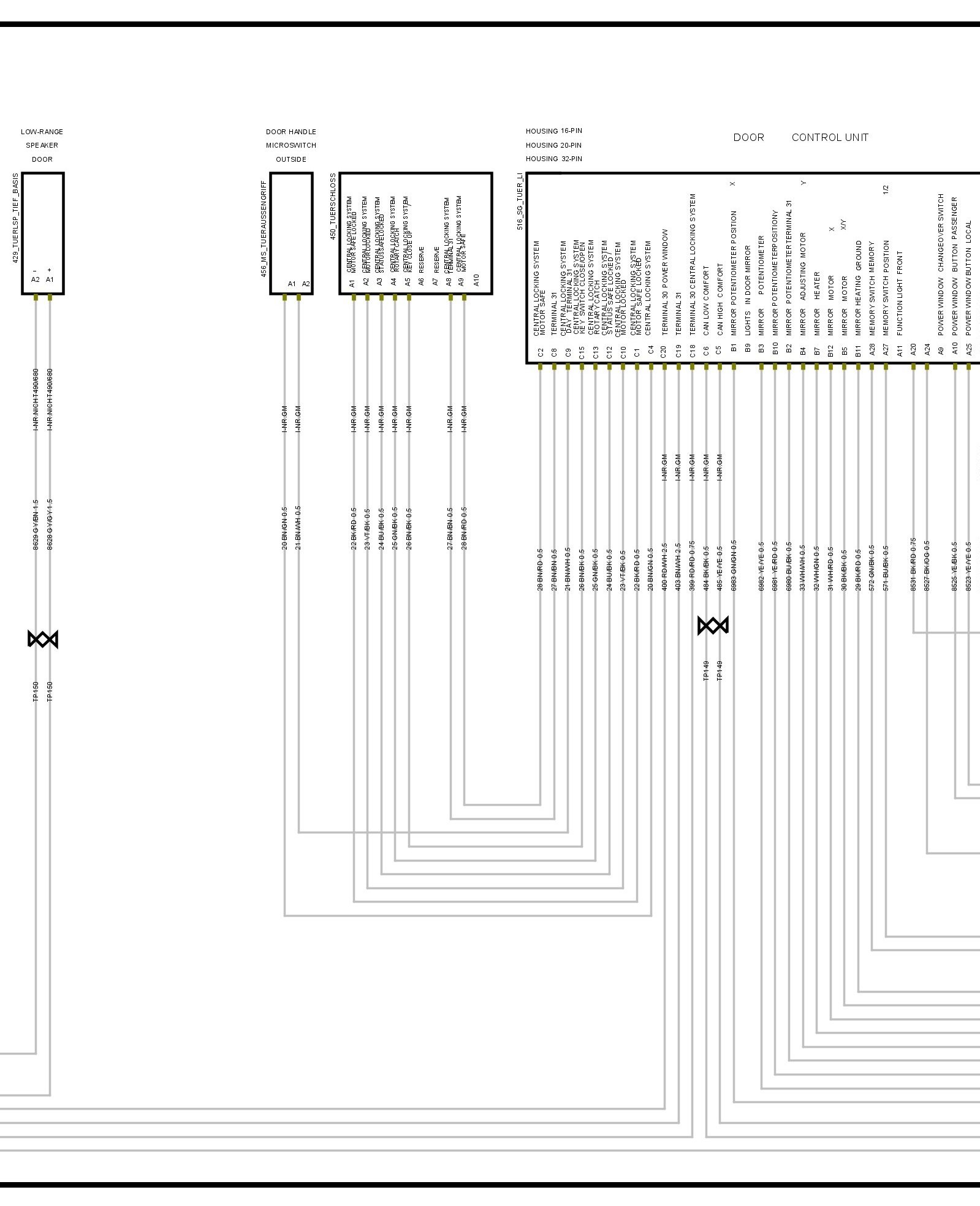

9X7 Door Wiring Harness - Sheet 9 (Part 3):

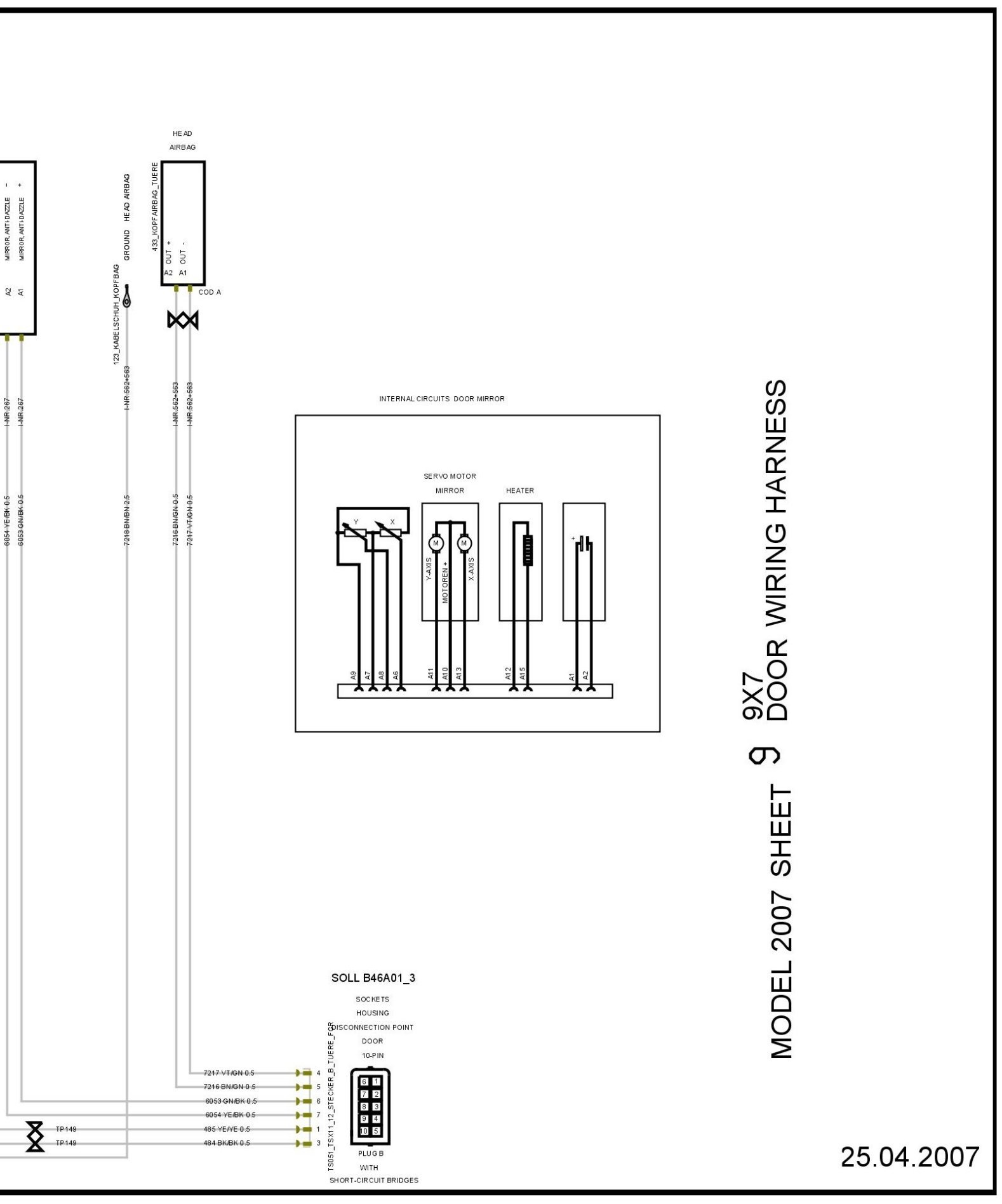

9X7 Door Wiring Harness - Sheet 9 (Part 4):

9X7 Door Wiring Harness - Sheet 9 (Part 5):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
