Automatic Transmission/Transaxle: Application and ID

Technical data, automatic transmission

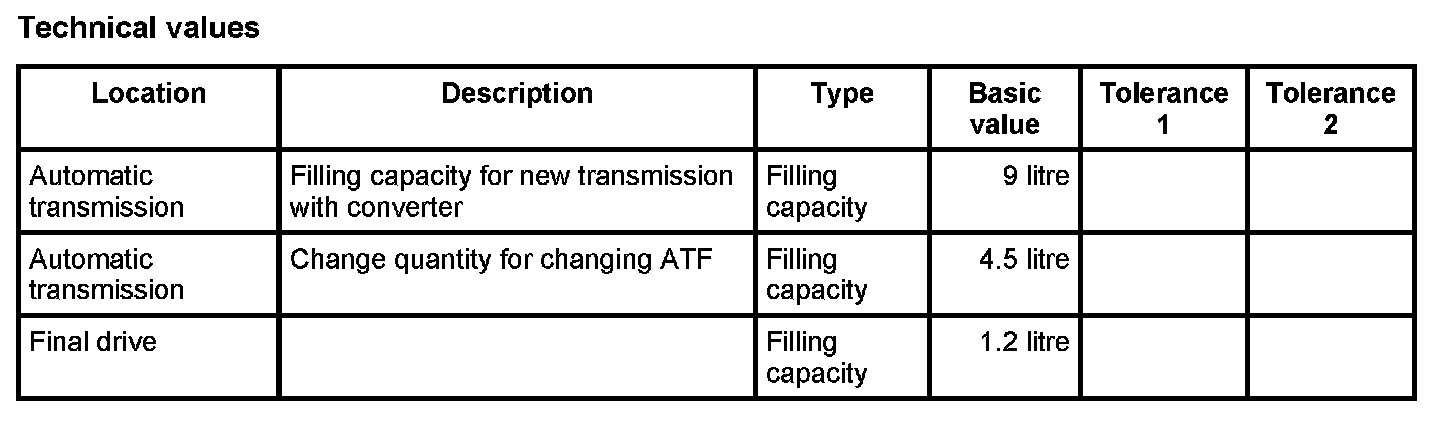

Technical values

Transmission ratios

Spur gear: 0.76

1st gear: 3.60

2nd gear: 2.19

3rd gear: 1.41

4th gear: 1.00

5th gear: 0.83

Reverse gear: 1.93/3.17

Final drive ratio: 3.56
