Removing and Installing Control Unit For Garage Door Opener/Homelink

Removing And Installing Control Unit For Garage Door Opener/HomeLink

Preliminary work

Preliminary work for control unit for garage door opener/HomeLink
Removing front apron.

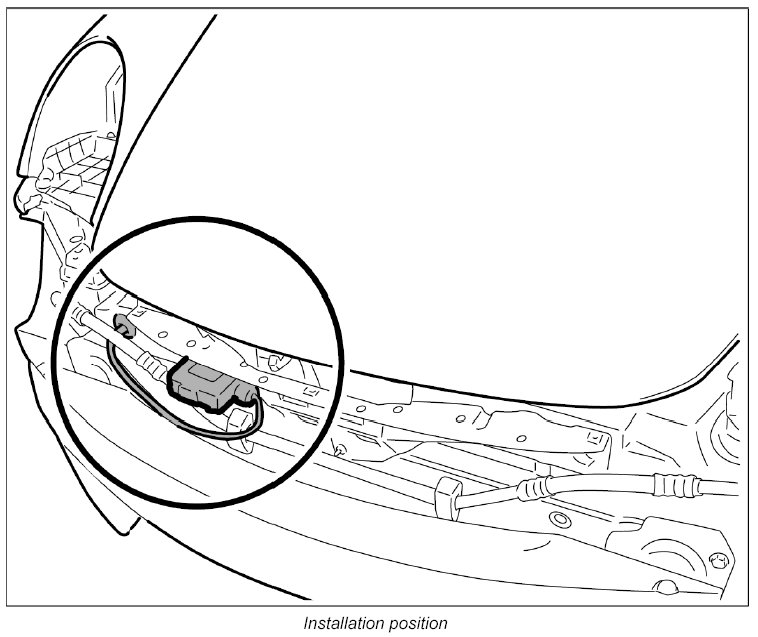

Removing control unit for garage door opener/HomeLink

1. Unclip control unit from the holder -A-.

2. Release electric connector -A- and remove it from control unit.

Installing control unit for garage door opener/HomeLink

1. Push electric connector onto control unit until it is felt to engage.

2. Engage and clip control unit into holder.

Subsequent work

Subsequent work for control unit for garage door opener/HomeLink
Installing front apron.

Teaching control unit for garage door opener/HomeLink

HomeLink

WARNING: Danger of accidents if persons, animals or objects lie in the swinging range of the controlled mechanism during operation of the garage door opener.

- Ensure that there are no persons, animals or objects in the swinging range of the controlled mechanism during operation of the garage door opener.
- Observe the safety instructions for the original hand-held transmitter.

The programmable HomeLink replaces up to three original remote controls for operating various equipment (e.g. garage door, gate to property, alarm system).

The buttons -1 to 3- can be programmed with a frequency of an original remote control.

Prerequisites for operating and programming the HomeLink:
- The ignition is switched on.
- The fog lights are switched off.

To activate the required equipment:
Press the relevant button -1, 2 or 3-. The LED -A- lights up during signal transmission.

INFORMATION:
Original remote controls for garage door system cannot be taught to operate with the HomeLink in the vehicle. OR: The teaching process was confirmed, but HomeLink will not work or only works sporadically.
- Check that the battery in the original remote control for the garage door opener is new. If in doubt, change the battery and repeat the teaching process.

Operating instructions:
Always use the garage door opener in the direction of travel. Otherwise range limitations cannot be ruled out.

Before selling the vehicle, erase the programmed garage door opener signals on the keypad.

To determine whether the original remote control has a fixed or variable code, please read the instructions for the original remote control.

In the case of a standard fixed code, the LED in the roof console is permanently lit during the transmission process. No further steps are necessary for the operation of compatible systems.

If the system set is not activated by the garage door opener control unit, this may be because the original remote control has a variable code.

Assigning garage door opener/HomeLink signals to buttons

Garage door opener/HomeLink with fixed code system

1. Press the required button until the LED flashes slowly. You then have around 5 minutes to complete steps 2 and 3.

2. Hold the original remote control approx. 0 - 30 cm in front of the marked position on the vehicle.
3. Press the Send button on the original remote control until the fog lights flash three times (up to approx. 45 seconds).
4. Repeat steps 1 to 3 to assign further buttons.

INFORMATION:
- A number of attempts may be necessary at different distances between the vehicle and original remote control.
- The fog lights flash once after 5 minutes. The programming operation must then be started from scratch.

Garage door opener/HomeLink with variable code system
Check operating instructions for the garage door drive (or other system) for specification of a variable code.

If the garage door opener control unit has been programmed to a variable code system, it will still have to be synchronised with this system on completion of programming before it will work correctly.

1. Press the required button until the LED flashes slowly. You then have around 5 minutes to complete steps 2 and 3.

2. Hold the original remote control approx. 0 - 30 cm in front of the marked position on the vehicle.
3. Press the Send button on the original remote control until the fog lights flash three times (up to approx. 45 seconds).
4. To synchronise the system: press the programming button on the garage door drive receiver. You then have 30 seconds to initiate step 5.
5. Press assigned button on the HomeLink twice. (You may have to press the button to be assigned a third time on some equipment in order to complete the setting.)
6. Repeat the programming steps to assign further buttons.

Re-programming an individual button

1. Press the required button until the LED flashes slowly (approx. 20 seconds). You then have around 5 minutes to complete steps 2 and 3.

INFORMATION:
- This operation erases the standard codes set in the factory. Do not repeat this operation if additional buttons are to be programmed.
- Hold the two outer buttons -1 and 3- down for around 20 seconds until the LED -A- starts to flash quickly. All programmed signals for the buttons -1 to 3- are erased.
- Do this before selling the vehicle, for example.

Diagnostics

INFORMATION:
Original remote controls for garage door system cannot be taught to operate with the HomeLink in the vehicle. OR: The teaching process was confirmed, but HomeLink will not work or only works sporadically.
- Check that the battery in the original remote control for the garage door opener is new. If in doubt, change the battery and repeat the teaching process.

If after carefully observing the operating instructions and following the procedures described, teaching of the garage door opener control unit is not possible, further information can be obtained from a Hotline facility. A basic requirement is to obtain the diagnostic information beforehand as follows.

Software version

1. Press key I or III (not both) and hold for 50 seconds. The LED stops flashing and goes out completely. Continue to hold the key down. A few seconds later the LED flashes several times. The number of flashes corresponds to the software version.

Four flashes Version 4.0

Regional code status

2. Press key II on the roof console and hold for approx 50 seconds until the LED goes out and remains out. Continue to hold key II down. After a few seconds the LED flashes several times. The number of flashes indicates the programmed region.

One flash Rest of Europe
Two flashes France
Three flashes U.K.
Four flashes Italy

3. Provide the following additional information about the vehicle and the original remote control:
- Dealer, make, model and model year of the vehicle.
- Make, model, age and operating frequency of the original remote control.
