395519 Removing and Installing Sealing Ring For Cardan Flange

WM 395519 Removing and installing sealing ring for cardan flange

Tools









Technical values






Preliminary work for cardan flange sealing ring

1. Remove engine guard -> 108019 Removing and installing engine guard - section on "Removing" 108019 Removing and installing engine guard (underbody panelling).
2. Remove front cardan shaft -> 390219 Removing and installing front cardan shaft - section on "Removing" 390219 Removing and installing front cardan shaft.

Removing sealing ring for cardan flange






Overview of cardan flange sealing ring

1. Mark nut on drive flange with a coloured pen -arrow-.





Marking nut

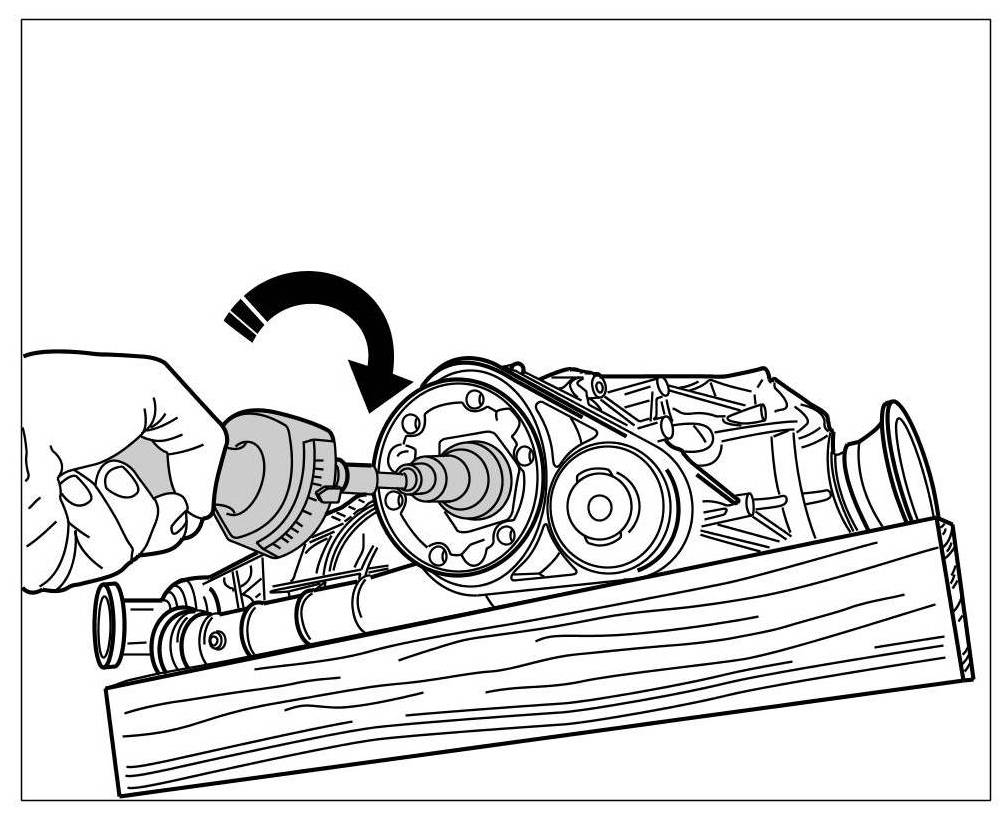

2. Determine rolling moment of axle transmission with special tool torque screwdriver for measuring friction moment 89. Push stop on special tool to zero and turn transmission several times. Note the displayed value.





Measuring rolling moment

3. Unscrew nut on drive flange. To do this, use the special tool counterer 3435 to block the transmission => Measuring rolling moment.
4. Remove drive flange with special tool striker VW 771/1 and shop-made tool => Removing drive flange.





Removing drive flange

5. Remove sealing ring with special tool striker VW 771/1 and extraction tool VW 771/37.





Removing sealing ring

Installing sealing ring for cardan flange






Overview of cardan flange sealing ring

1. Fill space between dust and sealing lips with grease.





Greased sealing ring

2. Drive sealing ring in as far as the mounting face with special tool pressure piece T10183.





Driving in the sealing ring

3. Push in drive flange and tighten nut.
4. Position marking on nut and drive shaft -arrow- again so that the rolling moment determined prior to removal is attained once again.





Marking nut

Information

- If the rolling moment has to be corrected, this should be done via the tightening torque of the nut.

5. Check rolling moment with special tool torque screwdriver for measuring friction moment 89.






Subsequent work for sealing ring for cardan flange

1. Install front cardan shaft -> 390219 Removing and installing front cardan shaft - section on "Installing" 390219 Removing and installing front cardan shaft.
2. Carry out oil check. -> 399035 Checking and topping up oil for all-wheel final drive - section on "Checking" 399035 Checking and topping up oil for four-wheel final drive
3. Install engine guard -> 108019 Removing and installing engine guard - section on "Installing" 108019 Removing and installing engine guard (underbody panelling).
