Cylinder Head Assembly: Specifications

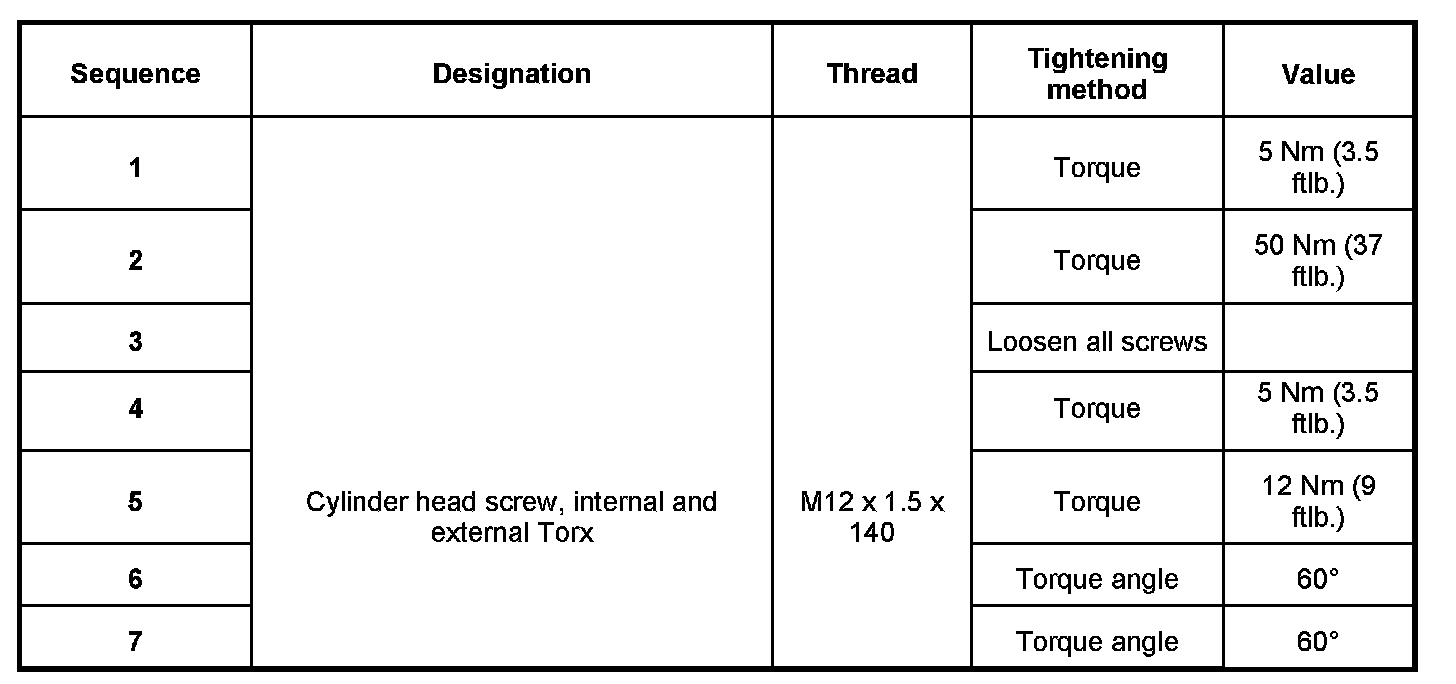

Cylinder head screws

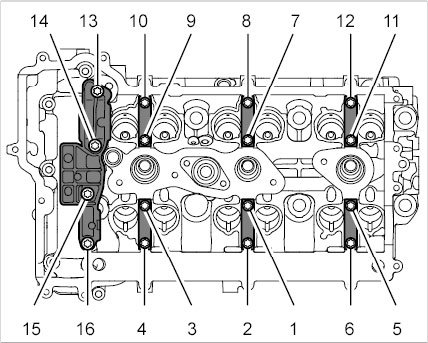

Tightening sequence for cylinder head screws





Intake-air distributor 13 Nm (9.5 ft lb.)





Cam bearing caps
Initial tightening 5 Nm (3.5 ft lb.)
Torque angle 50°





Camshaft controller
Initial tightening 35 Nm (26 ft lb.)
Torque angle 120°

Camshaft sprocket
Initial tightening 30 Nm (22 ft lb.)
Torque angle 60°

Exhaust manifold 23 Nm (17 ft lb.)
Tighten from the inside out
