Removing and Installing Rear-View Mirror

Removing And Installing Rear-view Mirror

Technical values







Preliminary work

1. Remove trim panel for mirror triangle. Refer to Removing and installing trim panel for mirror triangle.

Removing rear-view mirror

Disconnecting plug connection for rear-view mirror







1. Pull plug connection -1- off the rear-view mirror -2- ( -arrow- ).







Removing rear-view mirror

1. Unscrew fastening screws -1- ( -arrow- ) and remove rear-view mirror -2-.







Installing rear-view mirror

1. Fit rear-view mirror -2- and secure with the fastening screws -1- ( -arrow- ). Tightening torque: 6 Nm (4.5 ftlb.)

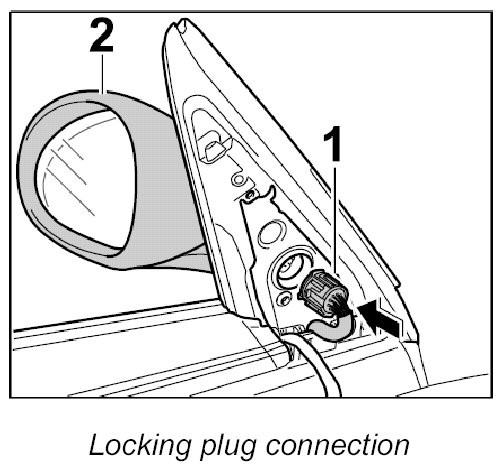

Locking plug connection for rear-view mirror

1. Insert plug connection -1- into the rear-view mirror -2- ( -arrow- ).







Subsequent work

1. Install trim panel for mirror triangle. Refer to Removing and installing trim panel for mirror triangle.
