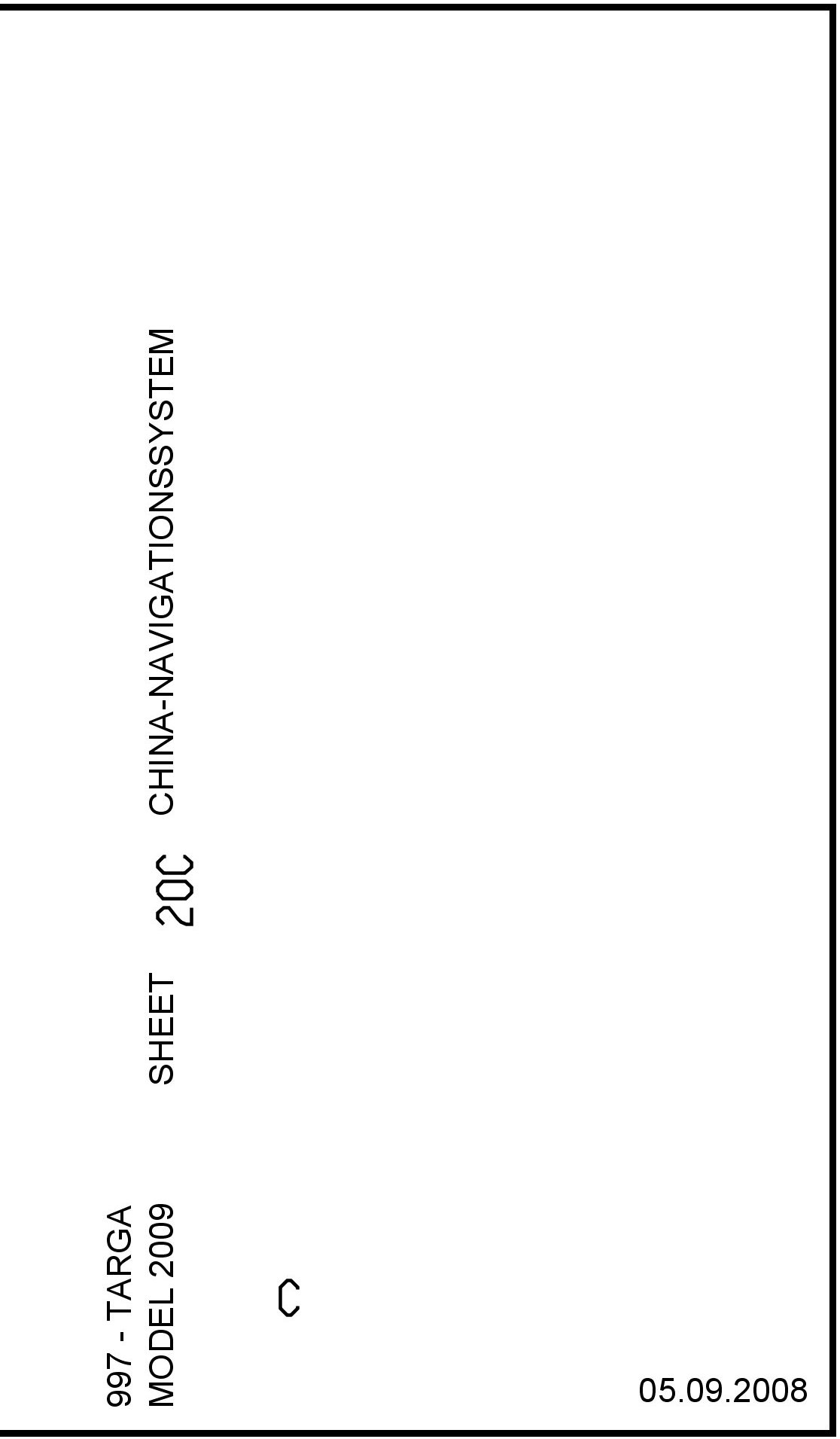

China-Navigations System - Sheet 20C

China-Navigations System - Sheet 20C

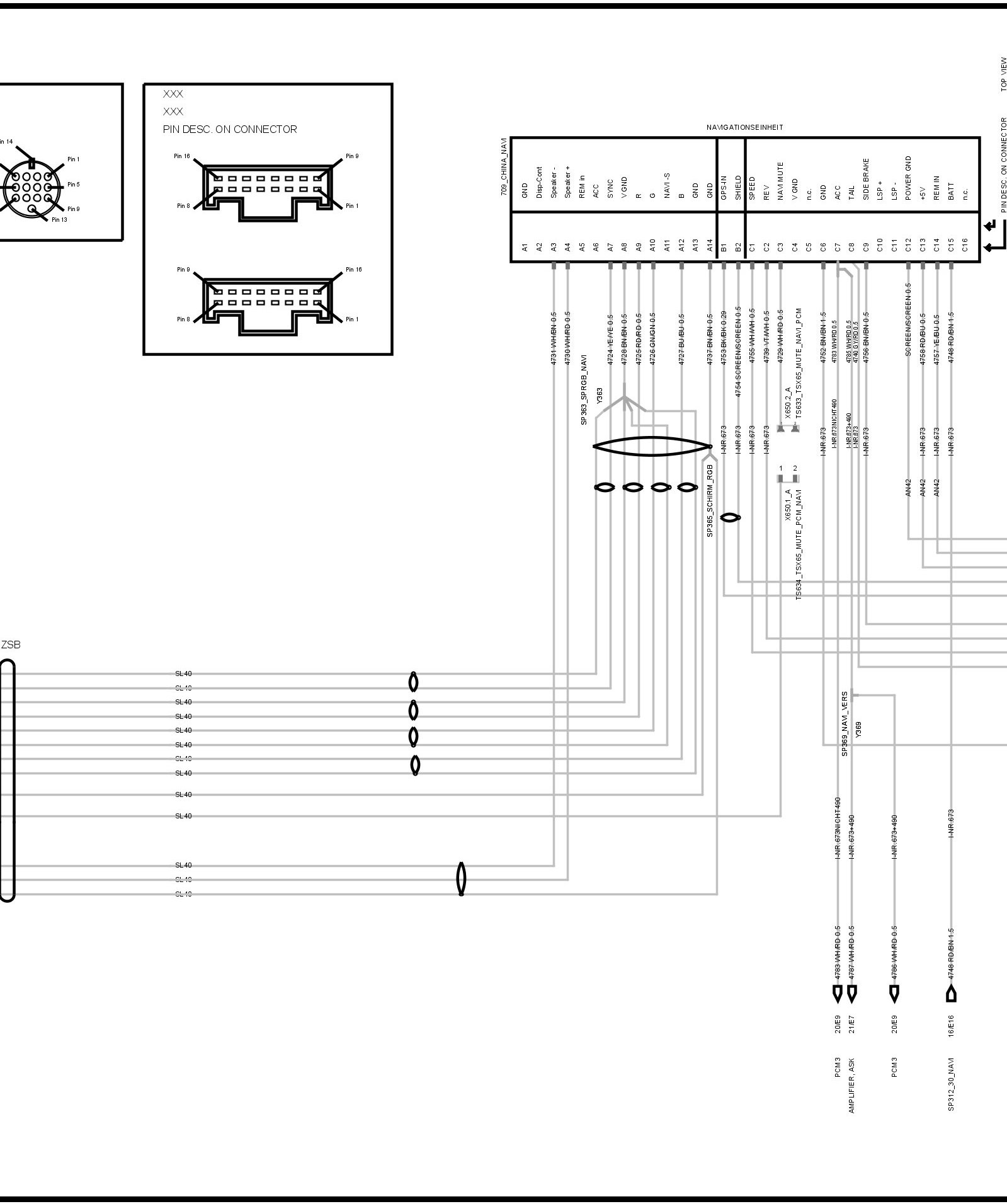

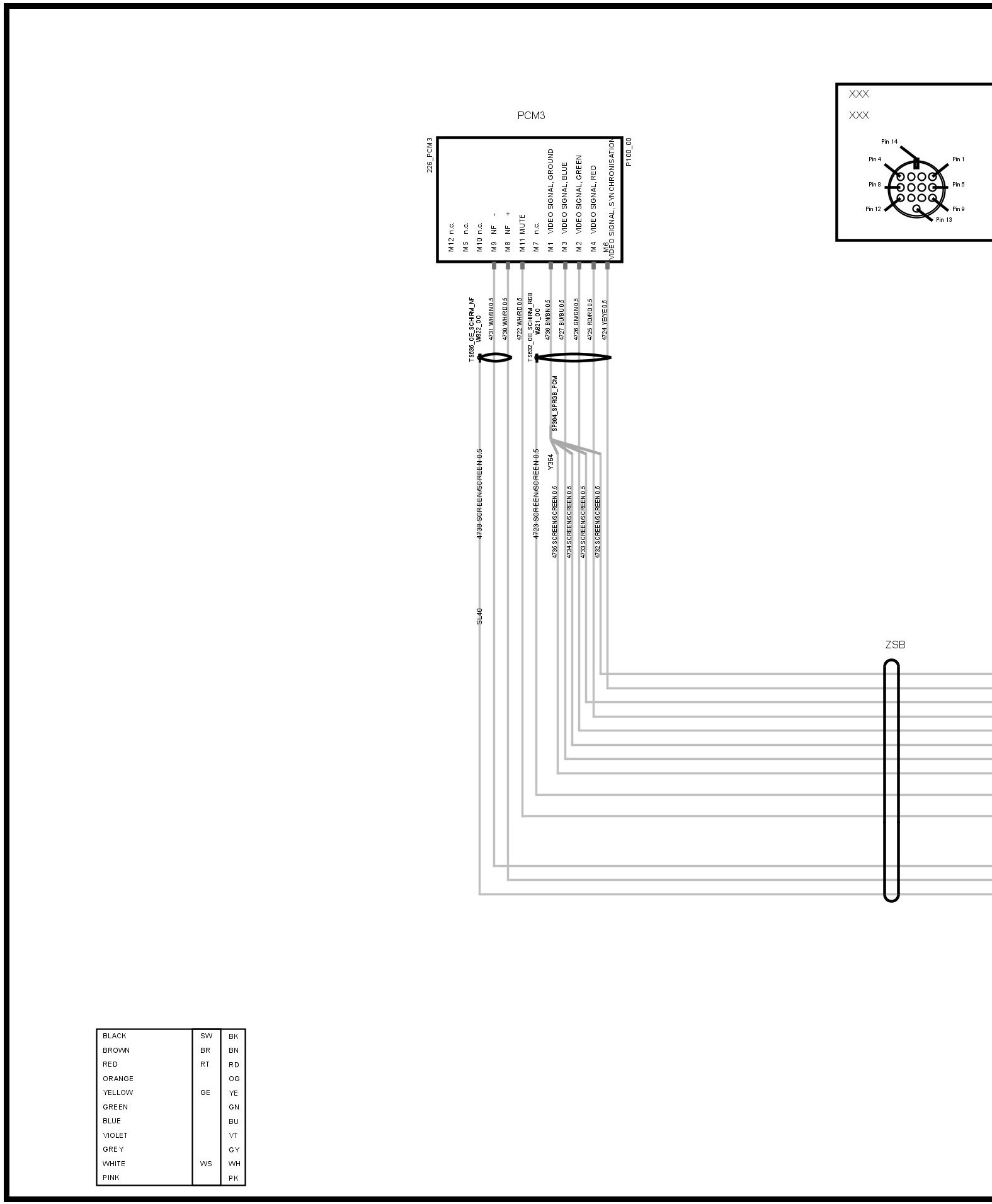

China-Navigations System - Sheet 20C (Part 1):

China-Navigations System - Sheet 20C (Part 2):

China-Navigations System - Sheet 20C (Part 3):

China-Navigations System - Sheet 20C (Part 4):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
