System Specifications

Technical Data, Air-Conditioning System

Technical values







Refrigerant distribution in circuit

Compressor approx. 50 cm(cubed)

Condenser (2 x 20 cm(cubed)) approx. 40 cm(cubed)

Evaporator 3approx. 0 cm(cubed)

Fluids with containers approx. 30 cm(cubed)

Circulating oil quantity in the
refrigerant circuit approx. 60 cm(cubed)

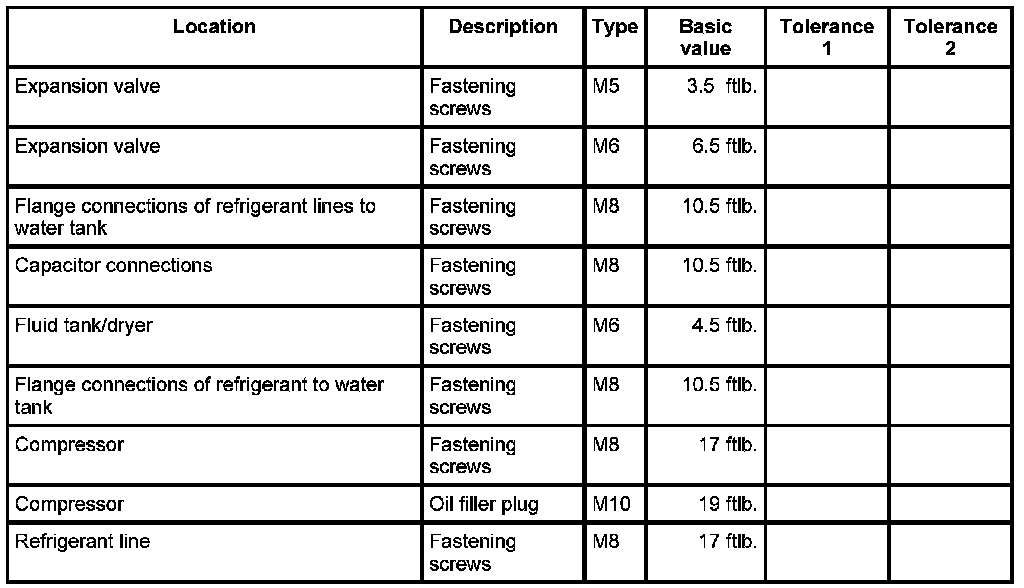

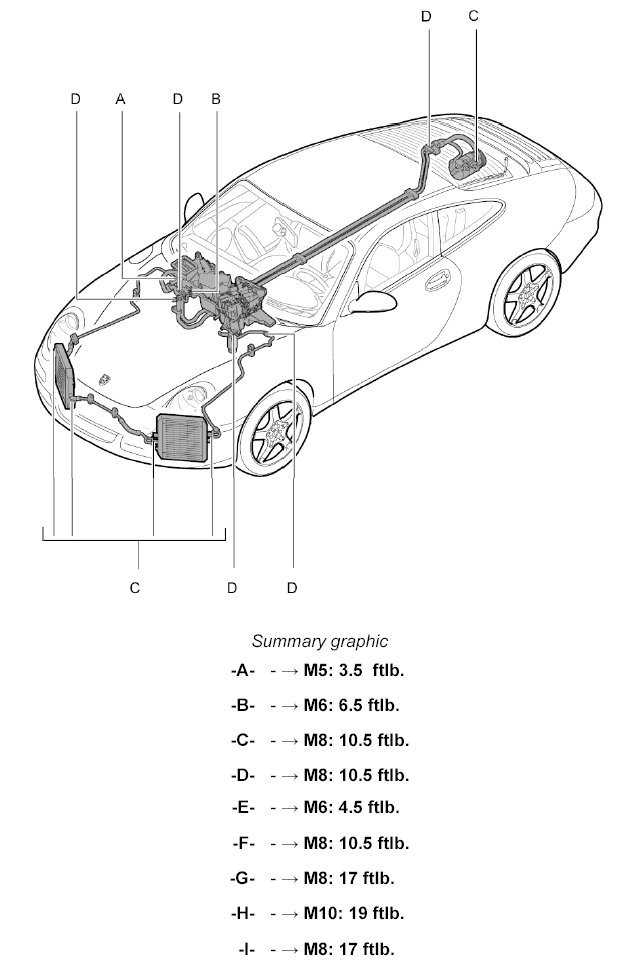

Tightening torques for air-conditioning system

INFORMATION:
- When installing the refrigerant lines, the screw connections must always be wet with refrigerant oil.
- The extracted refrigerant oil must be disposed of as special-category waste.
