Removing and Installing Instrument Panel Cover

Removing And Installing Instrument Panel Cover

Removing instrument panel cover







1. Unclip cover -1- using a plastic wedge on the retaining clips -2- and swivel it outwards -arrow A-.







2. Remove the cover -1- to the rear -arrow B-.

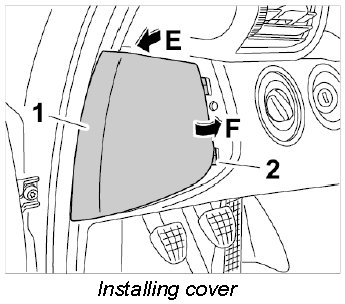

Installing the instrument panel cover







1. Insert cover -1- at the front -arrow E-.







2. Swivel cover -1- inward and push it in -arrow F- until the retaining clips -2- click into place.
