Overhaul

Disassembling And Assembling Sun Visor

Preliminary work

Remove sun visor. Refer to Removing and installing sun visor.

Disassembling sun visor

Removing mirror insert

1. Insert a narrow screwdriver between the mirror insert -3- and mirror housing -2- at the bottom centre, and unclip the mirror insert.







2. Pull the mirror insert -3- upwards and remove from the mirror housing -2-.







Removing bulb and contact clips

1. Remove bulb -5- from contact clips -4-. Take the contact clips upwards out of the holder.







Removing mirror housing

1. Insert a narrow plastic spatula between the mirror housing -2- and the sun visor -1- on the left and right and unclip the mirror housing.







2. Take the electric lead out of the mirror housing -2- and detach the mirror housing from the sun visor.







Assembling sun visor

Installing mirror housing

1. Insert electric lead into the mirror housing -2-. Position the mirror housing in the sun visor.







2. Press the mirror housing -2- at all four corners until it locks into place.







Inserting contact clips and bulb

1. Position the contact clips -4- in the mirror housing and fit under the lug. Insert bulb -5-.







Installing mirror insert

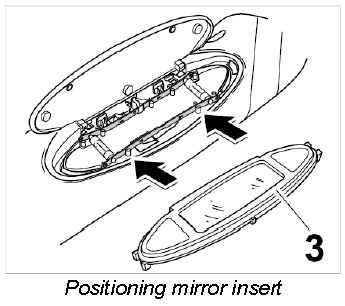

1. Position the lugs on the right and left of the mirror insert -3- in the mirror housing.







2. Clip the mirror insert -3- into the mirror housing -2- on the left, right and in the middle.







Subsequent work

Reworking

Install sun visor.
