Removing and Installing Mirror Glass

Removing And Installing Mirror Glass

Removing mirror glass

1. Press outside of mirror glass -1- inwards -arrow A- and carefully pull it out on the inside -arrow B-.

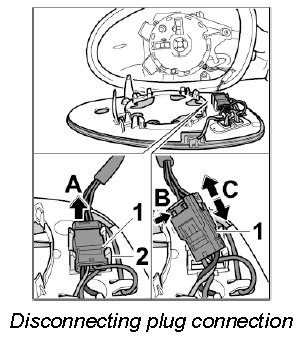

2. Unclip plug connection for mirror glass -1- out of mirror glass bracket -2- (-arrow A-).







3. Release plug connection for mirror glass -1- by pressing the locking lug -arrow B- and pull it off -arrows C-.

Installing mirror glass

1. Connect plug connection for mirror glass -1- (-arrows A-) until it engages securely.







2. Clip plug connection for mirror glass -1- into mirror glass bracket -2- (-arrow B-).
3. Insert mirror glass.







4. Carefully press in centre of mirror glass -1- (-arrow-) until the glass engages securely in the adjustment mechanism.
