Removing And Installing Rubber Seal For Door

Preliminary work

1. Remove inner sill. Refer to Removing and installing inner sill.

Removing rubber seal for door







1. Remove rubber seal for door -1- from the circumference of the sheetmetal flange.







Installing rubber seal for door







INFORMATION:
- The rubber seal for the door must be fitted by hand.
- Pay particular attention to the areas near the tight roundings for correct installation; there must be no deformation or stretching.
- Check the air vents; they must not be closed or covered.

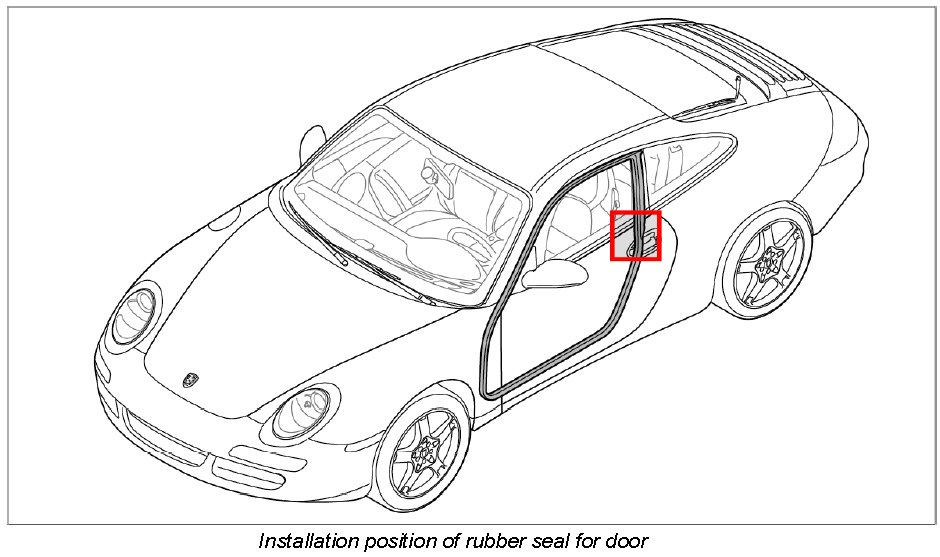

1. Fit rubber seal for door -1- in upper area of B-pillar on the sheetmetal flange (-section A-A-) and attach in -direction of arrow-.







Subsequent work

1. Install inner sill. Refer to Removing and installing inner sill.
