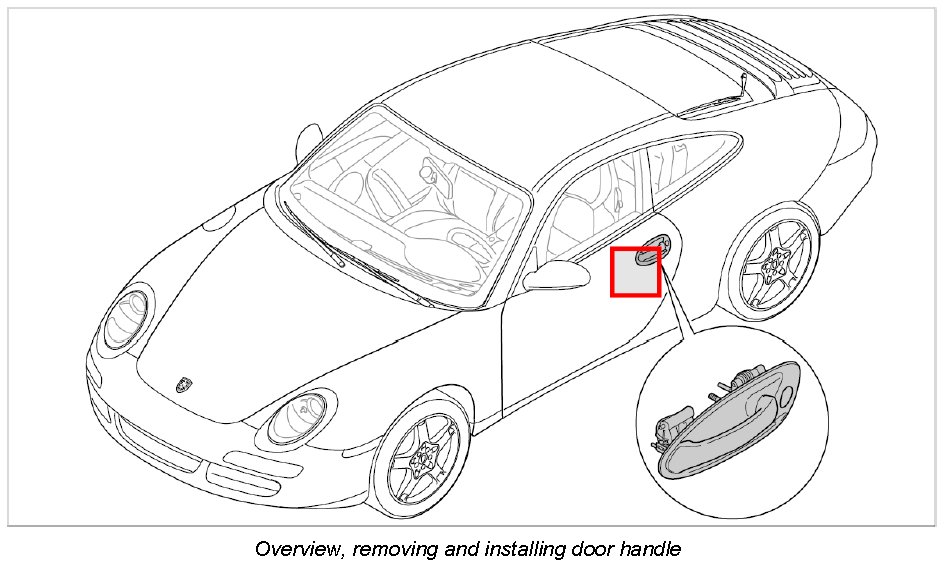

Removing and Installing Microswitch For Window Opening Controls

Removing And Installing Microswitch For Window Opening Controls

Technical values







Preliminary work

1. Remove door unit carrier. Refer to Removing and installing door unit carrier.

Removing microswitch for window opening controls

Unclipping electric wire for micro switches







1. Unclip electric wire for microswitch -1- from the bottom part of door handle -2-.







Removing microswitch for window opening controls







1. Unscrew fastening nuts -1-.







2. Pull bottom section of door handle -2- slightly backwards.

INFORMATION: Make sure that the locking tabs do not break when the microswitch is removed.

3. Gently loosen the locking tab -arrow A- and remove the microswitch -3- -arrow B-.

Installing microswitch for window opening controls







1. Position microswitch -3- on the door handle -4- and press in until it can be felt to engage.







2. Position the lower part of the door handle -2- under the handle and screw down with fastening nuts -1-. Tightening torque: Final tightening: 9.7 Nm (7 ftlb.)

Clipping in the electric wire for micro switches







1. On the bottom part of door handle -2- clip in the electrical wire -1-.







Subsequent work

1. Install door unit carrier. Refer to Removing and installing door unit carrier.
2. Check window opener.
2.1. Close the doors.
2.2. Actuate the door handle until the window lowering function is activated.
