Removing and Installing Cover For Centre Console

Removing And Installing Cover For Centre Console

Technical values

Preliminary work

INFORMATION: For vehicles with manual transmission.

1. Remove shift lever knob. Refer to Removing and installing shift lever knob.

INFORMATION: For vehicles with automatic transmission.

2. Remove selector knob. Refer to Removing and installing selector knob.
3. Remove centre console cover at the left and right. Refer to Removing and installing centre console cover.

Removing cover for centre console

Removing cover for support frame

1. Insert a plastic wedge -3- between the cover for support frame -1- and frame -2- and unclip cover -1- (-arrow A-).

2. Shift gearshift lever to the rear (4th gear) and take out cover -1- toward the top -arrow B-.
3. Check clamp -4- and replace if necessary.

Removing cover on PDK

1. Move selector lever to position "D".

2. Unclip the cover -1- using a plastic wedge -2- and lift it up and off -arrow-.

Removing frame

1. Loosen the fastening screws -1- and lift the frame -2- up and off -arrow-.

2. Check fastening clamp and replace if necessary.

Installing cover for centre console

Installing frame

1. Guide front cover -2- into the guide at the left and right -inset-.

2. Tighten fastening screws -1-. Tightening torque:: 1.8 Nm (1.5 ftlb.) ± 0.5 Nm (± 0.5 ftlb.)

Installing cover for support frame

1. Shift gearshift lever to the rear (4th gear).

2. Position the cover -1- (-arrow-) and clip it in fully.

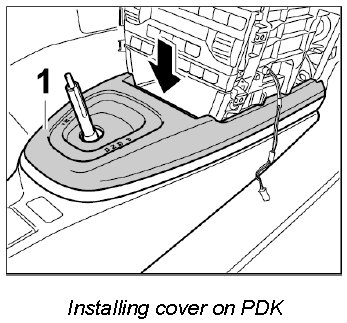

Installing cover on PDK

1. Move selector lever to position "D" and place cover on PDK -1- (-arrow-).

2. Clip in cover on PDK -1- fully.

Subsequent work

1. Install centre console cover at the left and right. Refer to Removing and installing centre console cover.

INFORMATION: For vehicles with automatic transmission.

2. Install selector knob. Refer to Removing and installing selector knob.

INFORMATION: For vehicles with manual transmission.

3. Install shift lever knob. Refer to Removing and installing shift lever knob.
