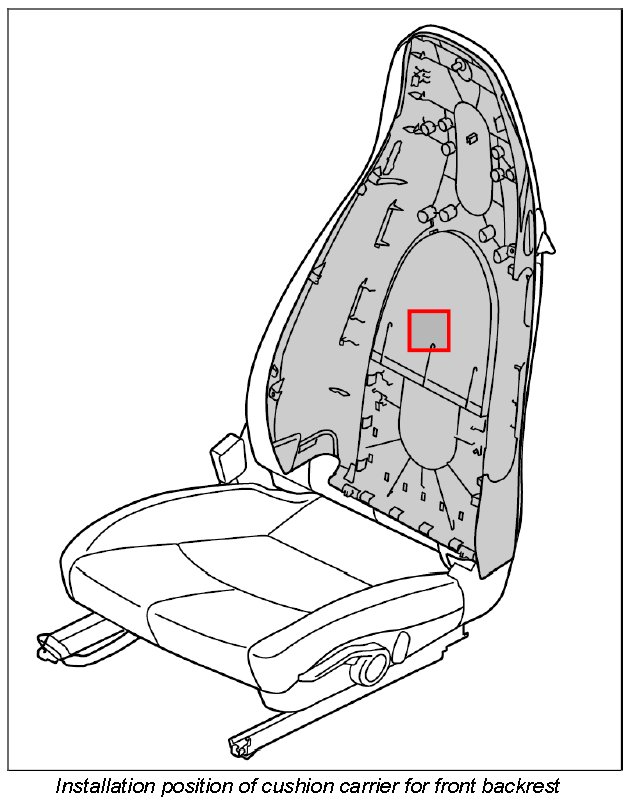

Removing and Installing Cushion Carrier For Front Backrest (Air-Conditioned Comfort Seat)

Removing And Installing Cushion Carrier For Front Backrest (Air-Conditioned Comfort Seat)

Preliminary work

1. Remove padding for front backrest. Refer to Removing and installing padding for front backrest (air-conditioned comfort seat).
2. Remove cover for suction fan for backrest. Refer to Removing and installing cover for suction fan for backrest.

Removing cushion carrier for front backrest







1. Unscrew fastening screws -1, 2-.







2. Pull frame for side airbag -2- out slightly and unclip locking lugs on the cushion carrier -1- using a screwdriver -arrows-.







3. Release locking lugs at the top in direction of arrow -inset A-.







4. Press lower locking tabs together and unclip cushion carrier -1- ( -inset B- ).
5. Press cushion carrier -1- out slightly close to the backrest release -arrows-.

Installing cushion carrier for front backrest

1. Press cushion carrier -1- outward slightly in area of backrest release and position it on the backrest frame -2- until the locking tabs engage at the top -Inset A- and bottom -Inset B-.







2. Press cushion carrier -1- at the sides into the frame for the side airbag -2- until the locking tabs engage.







3. Tighten fastening screws -1, 2-.







Subsequent work

1. Install cover for suction fan for backrest. Refer to Removing and installing cover for suction fan for backrest.
2. Install padding for front backrest. Refer to Removing and installing front backrest padding (air-conditioned comfort seat).
