Removing and Installing Subwoofer

Removing And Installing Subwoofer

Technical values







Removing subwoofer

INFORMATION:

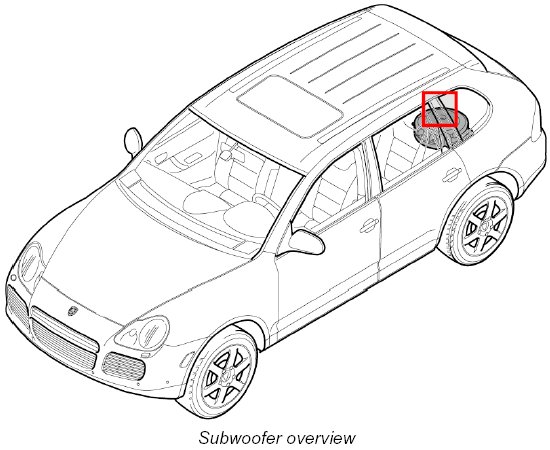

- The subwoofer is located in the spare wheel well.
- The subwoofer is installed together with the second battery instead of the spare wheel.
- The subwoofer is only used in conjunction with the Bose sound system.







1. Switch off all loads and remove ignition key.
2. Remove collapsible spare wheel:
2.1. Remove twist grip -A- and position it on bolt -B-.







2.2. Unscrew the bolt -B- and remove it together with the collapsible spare wheel.

3. Disconnect plug connection:
3.1. Pull apart retaining bracket for plug connection on subwoofer -1- and remove the plug connection.







3.2. Press connectors together -a- and pull apart.

4. Remove subwoofer:







4.1. Undo the four fastening nuts -2- and remove subwoofer.

Removing subwoofer together with second battery

INFORMATION:
- The subwoofer is located in the spare wheel well.
- The subwoofer is installed together with the second battery instead of the spare wheel.
- The subwoofer is only used in conjunction with the Bose sound system.







1. Switch off all loads and remove ignition key.
2. Removing subwoofer fastening:
2.1. Remove tyre sealant -1- if present.
2.2. Unscrew the two fastening nuts -2-.







2.3. Undo fastening screw -3- and washer.

3. Disconnect plug connection and remove subwoofer:
3.1. Remove plug connection from retaining bracket on the subwoofer and disconnect the plug connection.







3.2. Lift subwoofer up and out.

Installing subwoofer
1. Position subwoofer and screw down:







1.1. Position subwoofer and screw down with the four fastening screws -2-. - Tightening torque: 1.5 ftlb.

2. Connect plug connection:
2.1. Push plug connection together until plug is felt to engage.







2.2. Insert plug connection in retaining bracket and press into place.

3. Install collapsible spare wheel:
3.1. Insert collapsible spare wheel.
3.2. Insert screw -B-.







3.3. Position twist grip -A- and tighten fastening screw -B-.

Installing subwoofer together with second battery
1. Install subwoofer:
1.1. Position the subwoofer over the battery case.
1.2. Push the electrical plug connection together until the plug is felt to engage.







1.3. Position electrical plug connection on subwoofer.

2. Fasten subwoofer:
2.1. Insert fastening screw -3- with washer and tighten.
2.2. Position both fastening nuts -2- and tighten them. - Tightening torque: 1.5 ftlb.







2.3. If present, place tyre well.
