96221900 Removing and Installing Bulb For Interior Light
WM 962219 Removing and installing bulb for interior light
Information

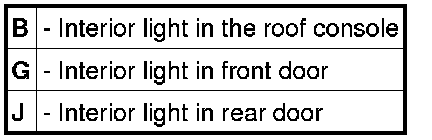

Overview of lights
Removing bulb for interior light in roof console
1. Switch off ignition and remove ignition key.
2. Use a plastic spatula or screwdriver to prise out the light cover.
Levering out light cover
3. Pull out middle bulb.
Pulling out middle bulb
Removing bulb for interior light in door
1. Switch off ignition and remove ignition key.
2. Pull out light -G-.
Removing light
3. Press on plug -a- and remove it.
Disconnecting light
4. Use a screwdriver to carefully lever the sheetmetal cover off the four locking elements.
Levering sheetmetal cover off
5. Pull bulb out of holder.
Pulling bulb out of holder
Installing bulb for interior light in roof console
1. Insert bulb fully into holder.
Inserting bulb
2. Position cover for lights and press into place. Ensure cover is fitted properly.
Installing light cover
Installing bulb for interior light in door
1. Insert bulb into holder.
Inserting bulb into holder
2. Position sheetmetal cover and press into place. Ensure all four locking elements engage properly and the sheetmetal cover is not deformed.
Positioning sheetmetal cover
3. Push in plug until it is felt to engage.
Inserting plug connection
4. Insert light into opening and press into place. Ensure light is fitted properly.
