Home
>>
Porsche
>>
2009
>>
Cayenne Turbo S (9PA) V8-4.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
DPS Seats Front - Sheet 9
DPS Seats Front - Sheet 9

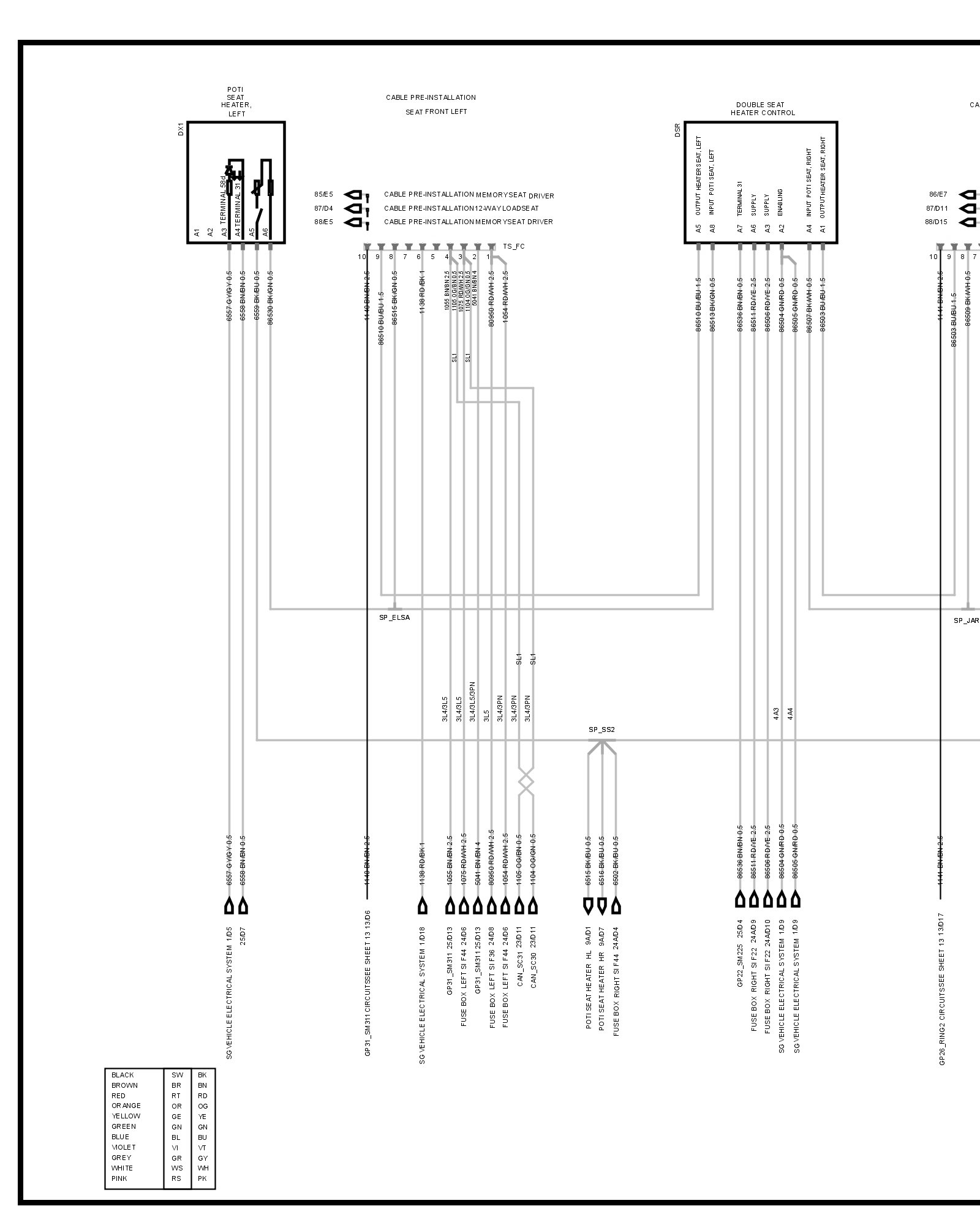

DPS Seat Front - Sheet 9 (Part 1):

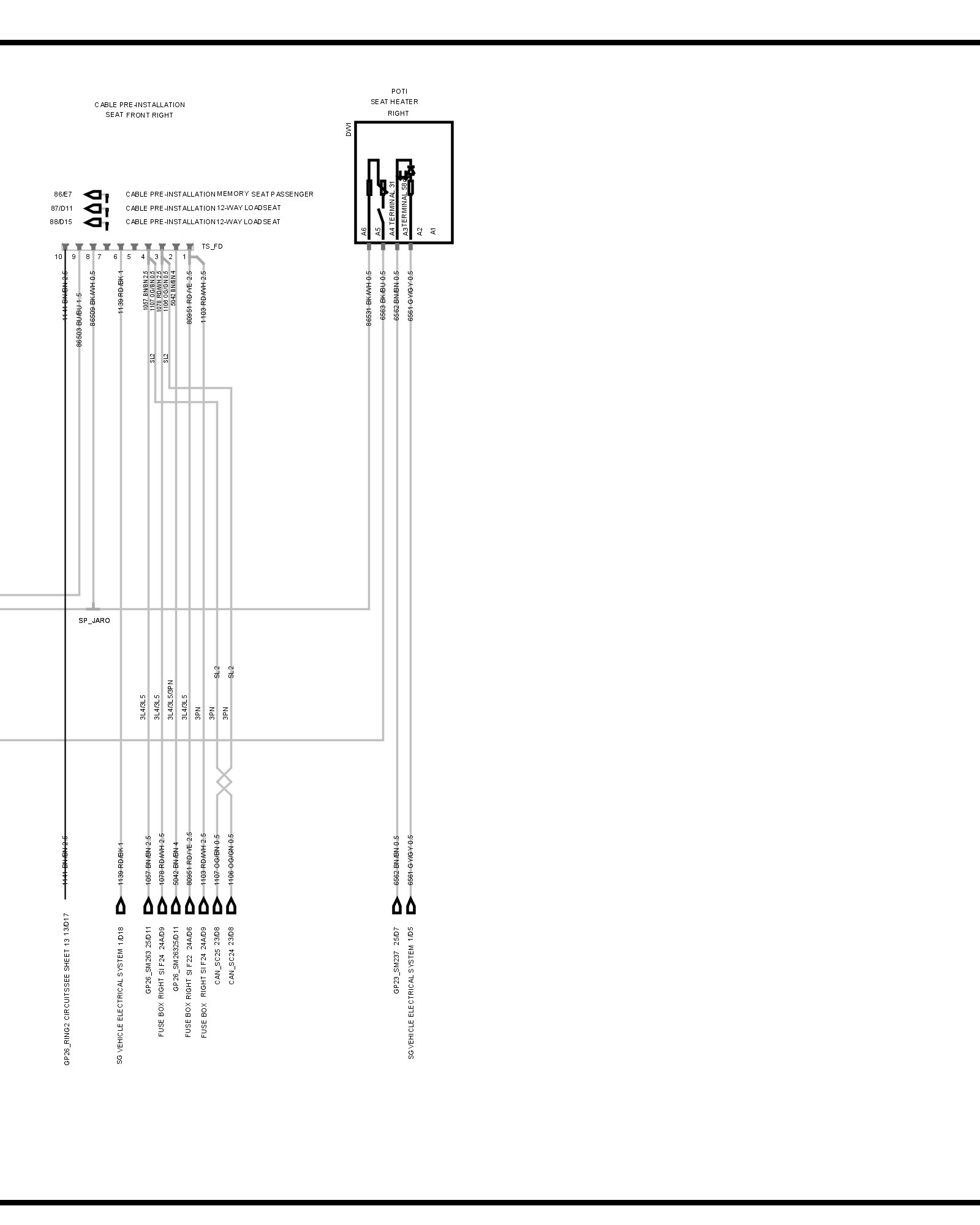

DPS Seat Front - Sheet 9 (Part 2):
DPS Seat Front - Sheet 9 (Part 3):
