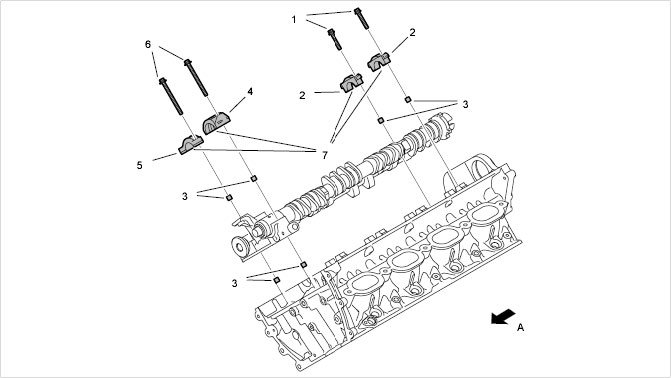

Camshaft Bearing

Mounting saddle for cylinders 1 - 4 and housing on intake and outlet camshaft to cylinder head M6 x 70
Tightening torque 13 Nm (9.5 ftlb.)

Mounting saddle for cylinders 5 - 8 and housing on intake and outlet camshaft to cylinder head M6 x 70
Tightening torque 13 Nm (9.5 ftlb.)







Camshaft mount, cylinder bank 1 to 4





Camshaft mount, cylinder bank 5 to 8
