Front Bumper Reinforcement: Service and Repair

Removing And Installing Front Bumper

Technical values







Preliminary work

1. Remove front apron. Refer to Removing and installing front apron.

INFORMATION: Only open for vehicles with garage door function.

2. Remove control unit for garage door opener. Refer to Removing and installing garage door opener control unit.

Removing front bumper

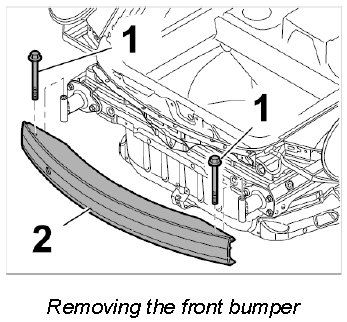

1. Unscrew fastening screws -1- and remove bumper -2-.







Installing front bumper







1. Position bumper -2-.







2. Screw in fastening screws -1- and tighten to the specified tightening torque. Tightening torque: Final tightening: 63 ftlb.

Subsequent work

INFORMATION: Only open for vehicles with garage door function.

1. Install control unit for garage door opener. Refer to Removing and installing garage door opener control unit.
2. Install front apron. Refer to Removing and installing front apron.
