Removing and Installing Lid For Tray

Removing And Installing Lid For Tray

Removing lid for tray

1. Remove lid for outer tray.
1.1. Open lid for tray.
1.2. Unscrew fastening screws -1- and remove lid for outer tray -2-.







2. Remove lid for inner tray.
2.1. Unscrew fastening screws -1-.
2.2. Push retaining pin -2- through -Arrow A- and remove belt strap and retaining pin -3- (-Arrow B-).
2.3. Remove lid for inner tray -4-.







3. Remove hinge.
3.1. Move axle -1- in -direction of arrow- and take off hinge -2-.
3.2. Disengage spring -3-.







Installing lid for tray

1. Fit hinge.
1.1. Engage spring -3-.
1.2. Position hinge -2-, push axle -1- through hinge and spring -3-.

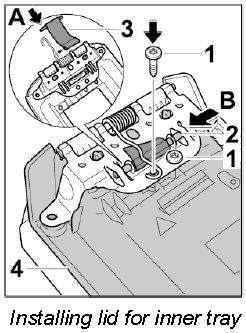

2. Install lid for inner tray.
2.1. Position lid for inner tray -4- and close it.
2.2. Push belt strap and retaining pin -3- through -Arrow A-, and push retaining pin -2- through hinge and belt strap -Arrow B-.
2.3. Position spring and secure lid for inner tray -4- with the fastening screws -1-.







3. Install lid for outer tray.
3.1. Open lid for inner tray.
3.2. Position lid for outer tray -2- and secure with the fastening screws -1-.
