Cowl Moulding / Trim: Service and Repair
WM 508719 Removing and installing cowl panel cover
Technical values
Preliminary work
Preliminary work
1. Remove right and left wiper arm. -> 922519 Removing and installing wiper arm - chapter on "Removing"
2. Remove battery cover. -> 270619 Removing and installing battery - chapter on "Removing"
3. Remove left and right cover. -> 852219 Removing and installing cover - chapter on "Removing"
Removing cowl panel cover
Removing lateral cap
Installation location of cowl panel cover
1. Unclip lateral cap.
Removing cover cap
Removing upper cowl panel cover
Installation position of cowl panel cover
1. Unscrew fastening nuts -1-. Remove spacer sleeve -2- , spring element -3- and sliding plate -4- in upward direction.
Removing upper cowl panel cover
2. Unscrew fastening screw -5- in the centre.
Disconnecting plug connection of spray nozzle for windscreen washer system
Installation location of cowl panel cover
1. Release electric plug connection for right and left spray nozzle -Arrow A- and pull apart.
Disconnecting plug connection of spray nozzle
Disconnecting water line for windscreen washer system
Installation location of cowl panel cover
1. Rotate water line in -direction of Arrow A- and pull off -Arrow B-.
Disconnecting water line for windscreen washer system
Disconnecting plug connection for radio antenna
Installation position of cowl panel cover
NOTICE
Voltage peaks
- Risk of damage to load or to the control unit
-> Remove the ignition key and switch off load before disconnecting or removing load.
Information
Only for vehicles with radio antenna.
1. Unclip locking mechanism for the antenna line. Disconnect antenna line and loosen the fastening screws -1-.
Disconnecting plug connection for radio antenna
Disconnecting plug connection for GPS antenna
Installation location of cowl panel cover
Information
Only for vehicles with GPS antenna.

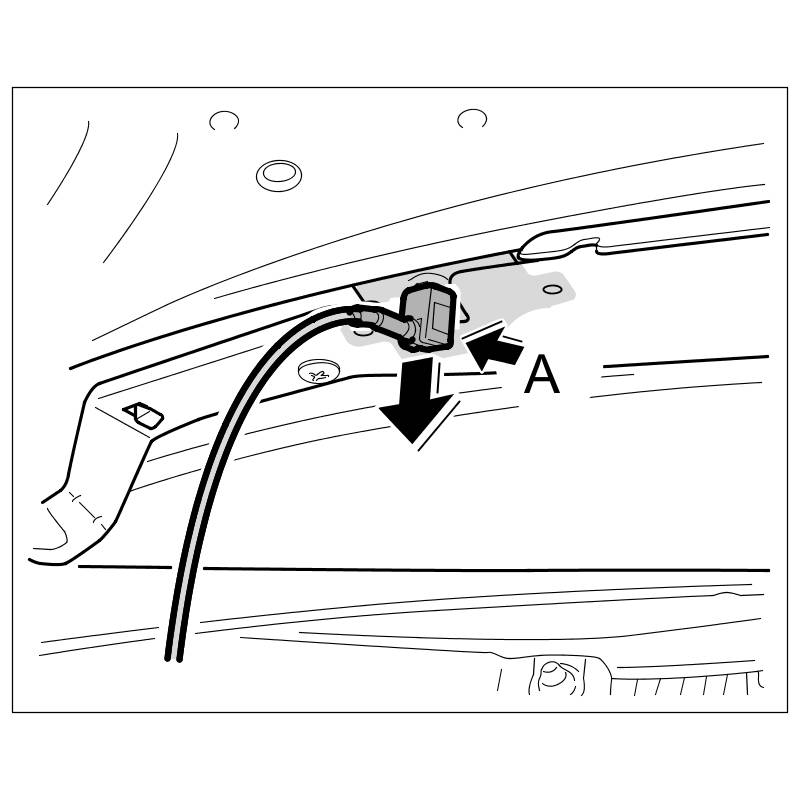

1. Under the cover for the cowl panel, release the electric plug connection -A- and remove.
GPS plug connection.
Removing lower cowl panel cover
Installation location of cowl panel cover
Information
Two persons are needed to remove the cowl panel cover!
1. Unscrew fastening screws -1- and carefully remove cowl panel cover -2- upwards.
Removing lower cowl panel cover
Installing cowl panel cover
Installing cowl panel cover
Installation location of cowl panel cover
Information
Two persons are needed to remove the cowl panel cover!
1. Insert cowl panel cover -2- in the plenum panel and align.
Installing cowl panel cover
2. Tighten fastening screws -1-. Tightening torque -> Tightening torque: 1.5 ftlb.
Locking plug connection for GPS antenna
Installation location of cowl panel cover
Information
Only for vehicles with GPS antenna.
1. Push on the electric plug until it clicks into place.
Locking plug connection for GPS
Locking plug connection for radio antenna
Installation location of cowl panel cover
Information
Only for vehicles with radio antenna.
1. Connect the antenna line and clip on the fuse.
Disconnecting plug connection for radio antenna
2. Slide antenna onto its support and screw it down with the fastening screws -1-.
Locking water line for windscreen washer system
Installation location of cowl panel cover
1. Connect water line -Arrow A- and rotate in -direction of Arrow B-.
Locking water line for windscreen washer system
Locking plug connection of spray nozzle for windscreen washer system
Installation location of cowl panel cover
1. Push on electric connector for spray nozzle until it clicks into place.
Locking plug connection of spray nozzle for windscreen washer system
Securing upper cowl panel cover
Installation position of cowl panel cover
1. Insert sliding plate -4- , spring element -3- and clamping bush -2-. Tighten fastening nuts -1-.
Securing upper cowl panel cover
2. Tighten fastening screw -5-.
Installing lateral cover cap
Installation location of cowl panel cover
1. Clip lateral cap into place.
Clipping lateral cap into place
Subsequent work
Subsequent work
1. Install right and left wiper arm. -> 922519 Removing and installing wiper arm - chapter on "Installing"
2. Install right and left cover. -> 852219 Removing and installing cover - chapter on "Installing"
3. Install battery cover. -> 270619 Removing and installing battery - chapter on "Installing"
-------------------------------------------------------------------------------
987110, 987111, 987120, 987121, 987140, 987141, 987160, 987161, 987310, 987311, 987320, 987321, 987330, 987340, 987360, 987361, 987371, 987381, 987720, 987721, 987740, 987741
Model year as of 2005
C00, C02, C05, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C45, C46, C98, C99
