576319 Removing and Installing Rubber Seal for Door
WM 576319 Removing and installing rubber seal for door
Technical values
Preliminary work
1. Remove A-pillar trim panel. -> 705719 Removing and installing A-pillar trim panel - section on "Removing" 705719 Removing and installing A-pillar trim
2. Remove inner door sill trim. -> 680519 Removing and installing inner door sill trim - section on "Removing"
3. Remove side trim panel. -> 707519 Removing and installing side trim panel - section on "Removing" 707519 Removing and installing side trim panel
Removing rubber seal for door
1. Unscrew fixing clip -1- and gently pull out rubber seal for door -2-.
Loosening rubber seal

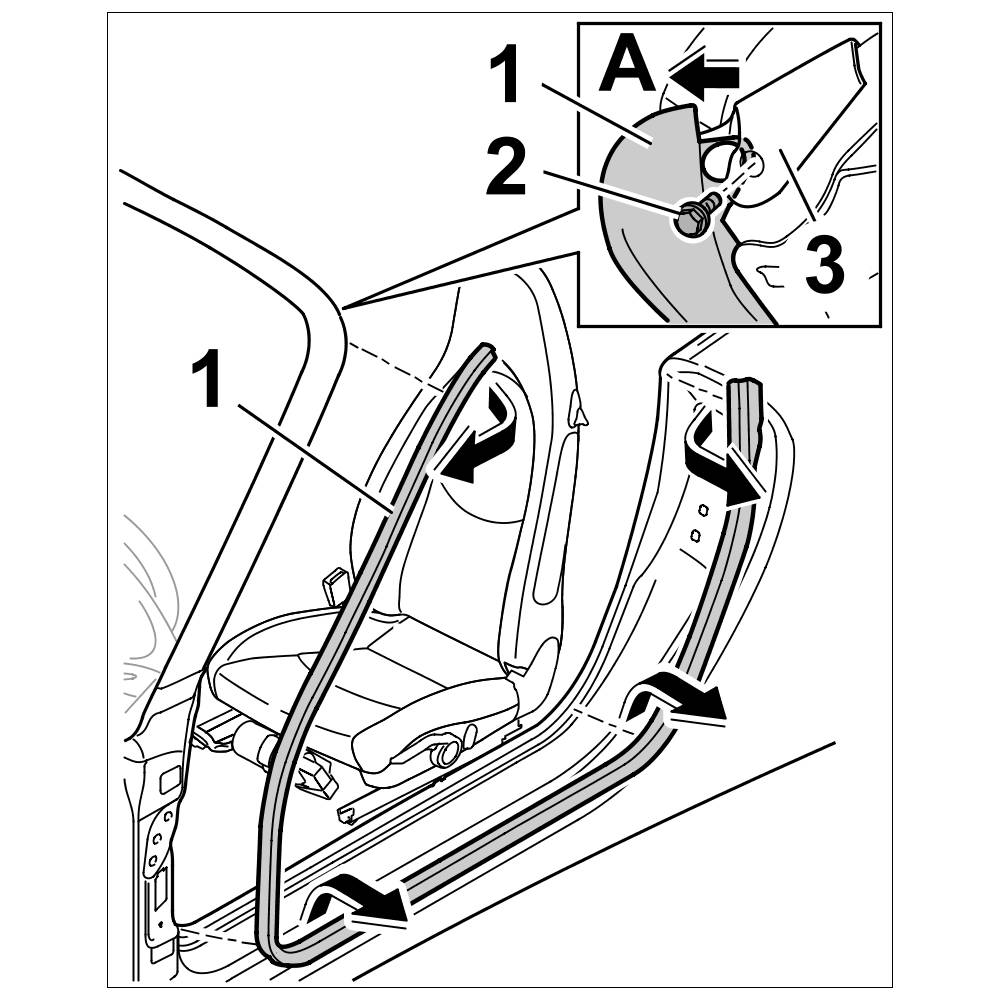

2. Unscrew fastening screw -2- at A-pillar and pull out rubber seal for door -1- under the cover strip -3- -Arrow A-.
Removing rubber seal for door
3. Remove rubber seal for door -1- from all around the sheetmetal flange.
Installing rubber seal for door
Information
- The rubber seal for the door must be fitted by hand.
- Pay particular attention to the areas near the tight roundings for correct installation; there must be no deformation or stretching.
- Check the air vents; they must not be closed or covered.
1. Fit rubber seal for door -1- all around the sheetmetal flange.
Installing rubber seal for door
2. Push rubber seal for door -1- under the cover strip -3- -Arrow A- and screw down with fastening screw -2-. Tightening torque => Tightening torque : 6 Nm (4.5 ftlb.)
3. Stick rubber seal for door -2- on the B-pillar and press in fixing clip -1- through both seals.
Fasten rubber seal.
Subsequent work
1. Install side-panel lining. -> 707519 Removing and installing side trim panel - section on "Installing" 707519 Removing and installing side trim panel
2. Install scuff plate. -> 680519 Removing and installing inner door sill trim - section on "Installing"
3. Install A-pillar trim panel. -> 705719 Removing and installing A-pillar trim panel - section on "Installing" 705719 Removing and installing A-pillar trim
