666719 Removing and installing trim frame for side window

WM 666719 Removing and installing trim frame for side window

Preliminary work

1. Remove rear roof trim panel. -> 708519 Removing and installing rear roof trim panel - section on "removing" 708519 Removing and Installing Rear Roof Lining
2. Remove C-pillar trim panel. -> 706819 Removing and installing C-pillar trim panel - section on "removing" 706819 Removing and Installing C-Pillar Trim Panel
3. Remove D-pillar trim panel. -> 706919 Removing and installing D-pillar trim panel - section on "removing" 706919 Removing and Installing D-Pillar Trim
4. Remove rear side trim panel. -> 700319 Removing and installing side trim panel for rear luggage compartment - section on "removing" 700319 Removing and installing rear luggage compartment side-trim panel
5. Remove side window. -> 647519 Removing and installing side window - section on "removing" 647519 Removing and Installing Side Window

Remove trim frame for side window





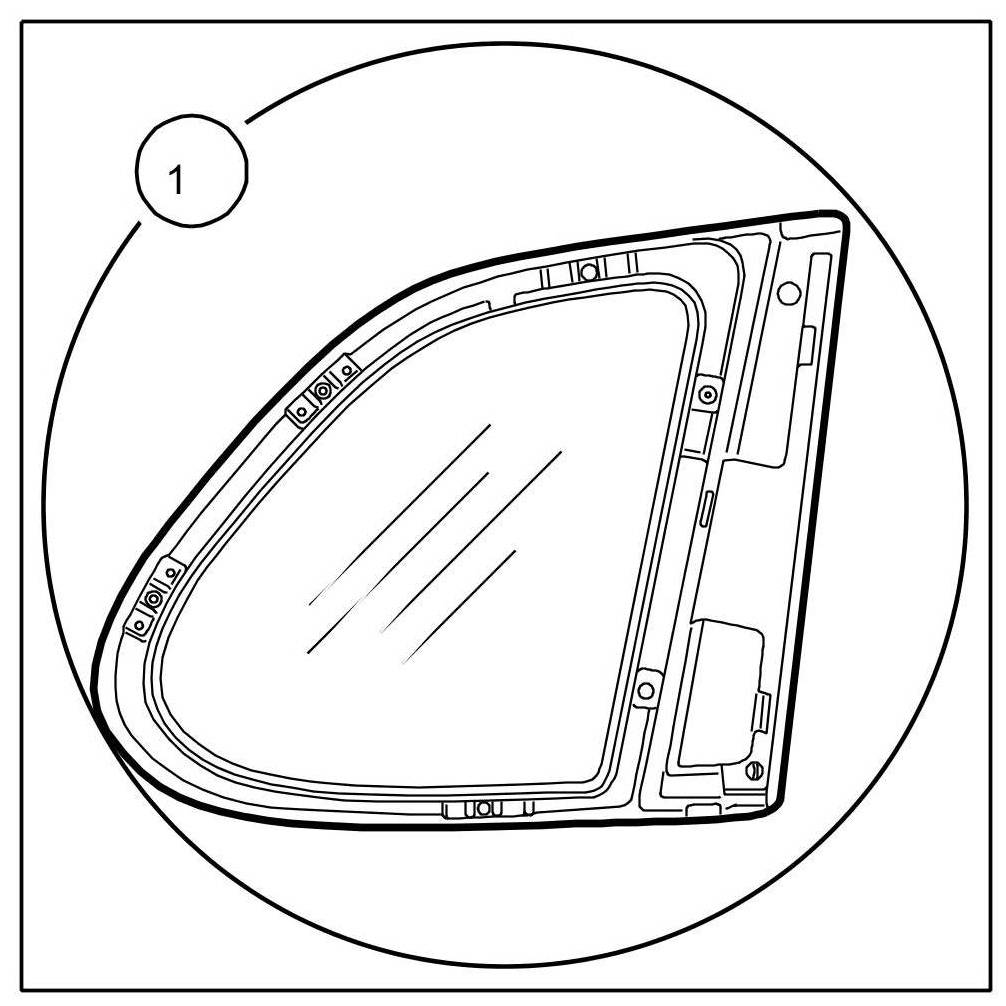

1. Press retaining clips -1, 2- for connecting piece -3- of side window trim strip inwards -Arrow A- or forwards -Arrow B- and lift connecting piece up and off ( -Arrow C- ).













2. To remove trim frame, unscrew fastening screws -4- and lift it off.





3. Remove trim strip for side window -5- outwards -arrow D- from the side window -6-.






Installing trim frame for side window





1. To install trim frame, insert the trim frame -5- in the side window -6- from outside -Arrow A- and position it.





2. Screw in and tighten the fastening screws -4-.





3. Insert connecting piece -3- of trim strip for side window from above -Arrow B- and clip in retaining clips -1, 2-.














Subsequent work

1. Install side window. -> 647519 Removing and installing side window - section on "installing" 647519 Removing and Installing Side Window
2. Install rear side trim panel. -> 700319 Removing and installing side trim panel for rear luggage compartment - section on "installing" 700319 Removing and installing rear luggage compartment side-trim panel
3. Install C-pillar trim panel. -> 706819 Removing and installing C-pillar trim panel - section on "installing" 706819 Removing and Installing C-Pillar Trim Panel
4. Install D-pillar trim panel. -> 706919 Removing and installing D-pillar trim panel - section on "installing" 706919 Removing and Installing D-Pillar Trim
5. Install rear roof trim panel. -> 708519 Removing and installing rear roof trim panel - section on "installing" 708519 Removing and Installing Rear Roof Lining
