Removing and Installing Oddments Tray Lid Extension

Removing And Installing Oddments Tray Lid Extension

Technical values







Preliminary work

1. Remove centre console.

Removing oddments tray lid extension

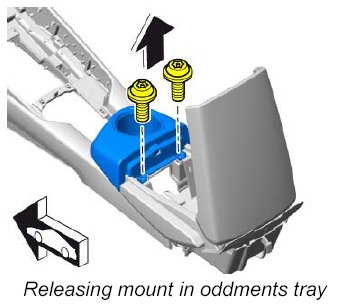

1. Unscrew fastening screws in oddments tray.

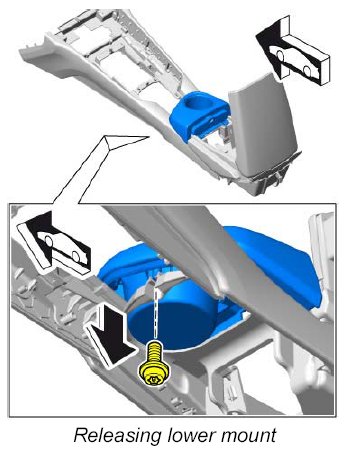

2. Unscrew lower fastening screw.

Installing oddments tray lid extension







1. Screw in fastening screws in the oddments tray
- Tightening torque: 2.5 Nm (2 ftlb.)±0.5 Nm (±0.5 ftlb.).







2. Screw in fastening screw securing lid extension in the oddments tray
- Tightening torque: 2.5 Nm (2 ftlb.)±0.5 Nm (± 0.5 ftlb.).

Subsequent work

1. Install centre console.
