Evaporator Temperature Sensor / Switch: Service and Repair

Removing And Installing Temperature Sensor

Preliminary work

Partly remove floor covering.

Removing temperature sensor







1. Turn the temperature sensor to the outside of the vehicle -arrow A- and remove it -arrow B-.







2. Release electric plug connection -a- and disconnect it -arrow C-.

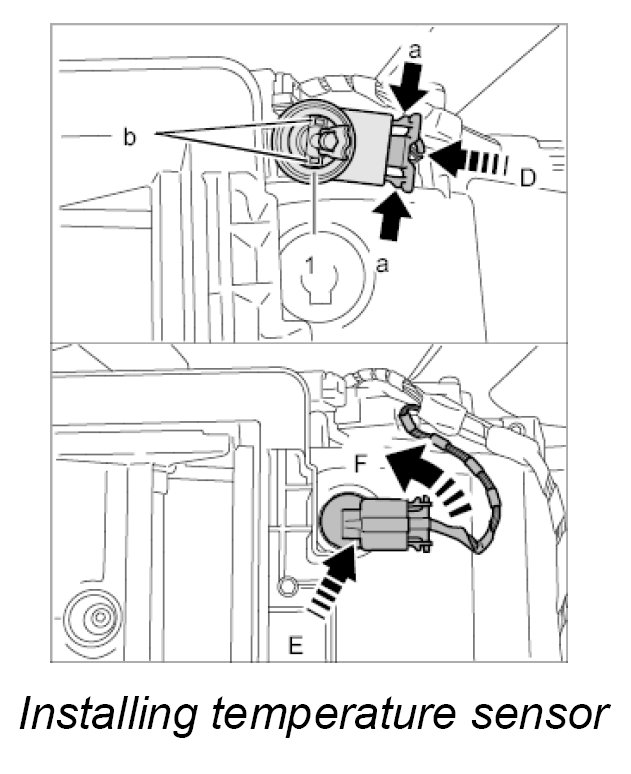

Installing temperature sensor

1. Check the sealing ring -1- and replace it if necessary.

2. Plug in electric plug connection -arrow D- until the locking lugs -a- engage securely.







3. Insert temperature sensor -arrow E- and turn it to the inside of the vehicle -arrow F- until the locking lugs -b- engage securely.


Subsequent work

Install floor covering.
