Removing and Installing Selector Support

Removing and installing selector support








Preliminary work for selector support

1. Remove selector knob.
2. Remove center console.

Removing selector support

1. Remove insulating material on selector support.





Selector support insulating material

2. Press locking cable off selector lever on transmission using disassembly tool Nr.21.





Removing locking cable

3. Press pendulum joint on locking cable upwards and pull to the rear and out of the support bracket.





Operating cable out of support bracket

4. Disengage and pull off cable plug on selector support.





Cable plug for selector support

5. Remove fastening screws for selector support and remove selector support.





Fastening screws, selector support

Disassembling selector support

Information
A new bottom part of the selector support must be used after disassembling the selector support as the fastening screws are screwed into the housing itself.

1. Unscrew fastening screws for top part of selector support.





Mount for top part of selector support

2. Remove top part of selector support and detach driving pin from end of operating cable -arrow-.





End of operating cable

3. Remove locking cable tab washer.





Locking cable tab washer

4. Remove locking cable.

Installing selector support

Assembling selector support

1. Insert locking cable into bottom part of selector support.
2. Install tab washer for operating cable.





Operating cable tab washer

3. Place selector support onto new bottom part of selector support. At the same time, insert driver into end of operating cable -arrow-.





End of operating cable

Information
A new bottom part of the selector support must be used after disassembling the selector support as the fastening screws are screwed into the housing itself.

4. Screw in fastening screws -arrows- for selector support.





Mount for top part of selector support

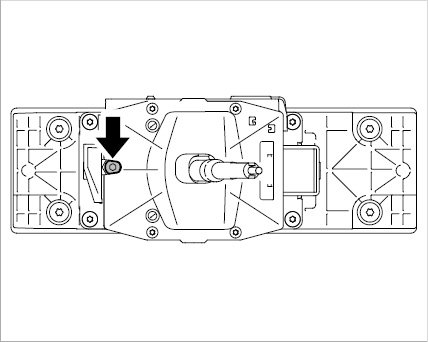

5. Loosen adjusting screw -arrow- in selector support by a maximum of one turn.





Adjusting screw, locking cable

Installing selector support

1. Move selector lever on the transmission to position P, the highest position.





Lever on transmission

2. Insert selector support with locking cable through the opening in the tunnel.
3. Push pendulum joint on locking cable into support bracket on transmission in direction of travel.





Locking cable on support bracket

4. Press locking cable onto ball head on transmission.





Fitting locking cable

5. Screw in fastening screws -1- for securing selector support to body. -> Tightening torque: 10 Nm (7.5 ftlb.)





Fastening screws, selector support

6. Move selector support to position P, all the way to the front.

Information
When tightening, the fastening screw must not be pushed in the longitudinal direction.

7. Tighten adjusting screw -arrow- for locking cable in selector support. -> Tightening torque: 10 Nm (7.5 ftlb.)





Adjusting screw, locking cable

Subsequent work for selector support

1. Install center console.
2. Adjust locking cable.
3. Install selector knob.
